Generator Connectors

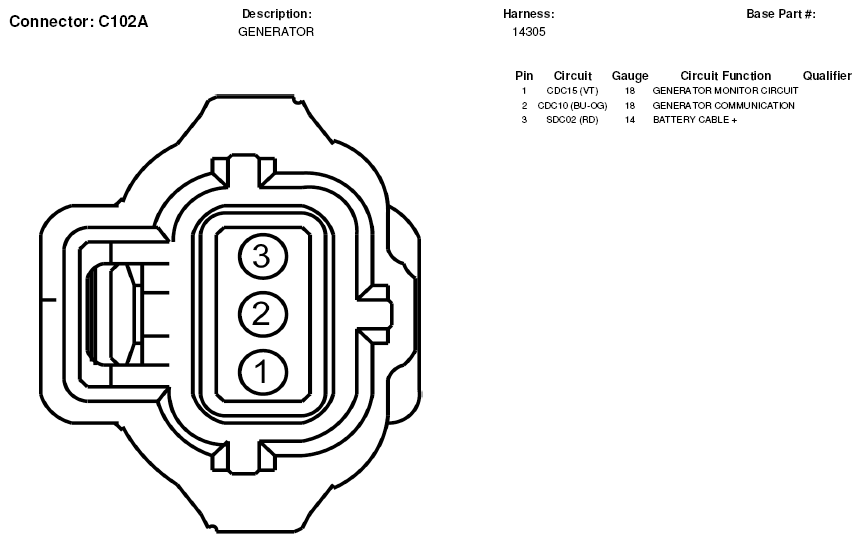

Fig 1: Generator Connector End View (C102A)
G05599754
Fig 2: Generator Connector End View (C102B)
G05599755
