Heater Blower Control Module Connector

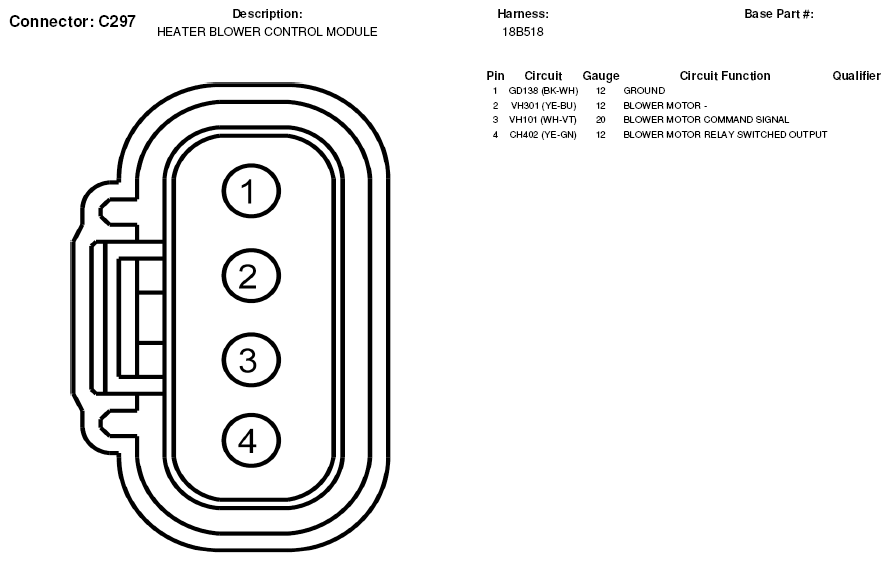

Fig 1: Heater Blower Control Module Connector End View (C297)
G05599853
