Power Running Board Module Connector

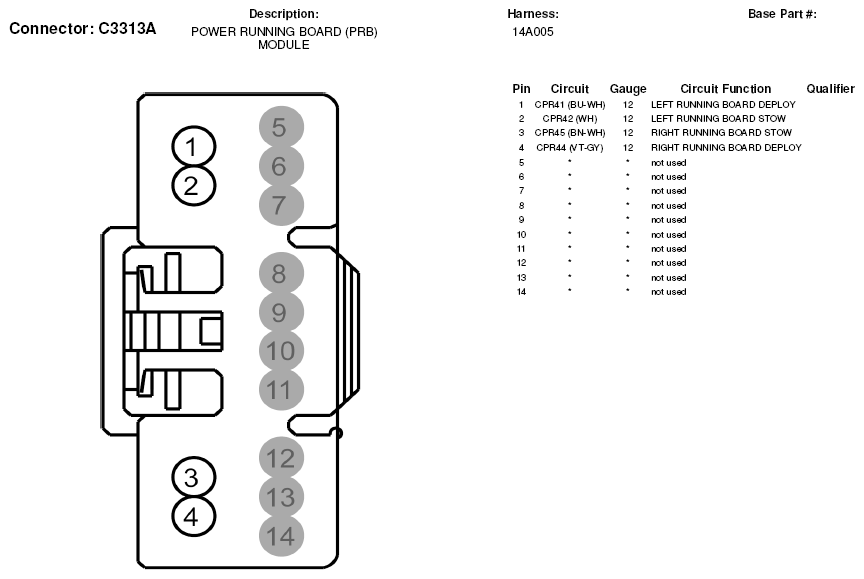

Fig 1: Power Running Board Module Connector End View (C3313A)

G05600097

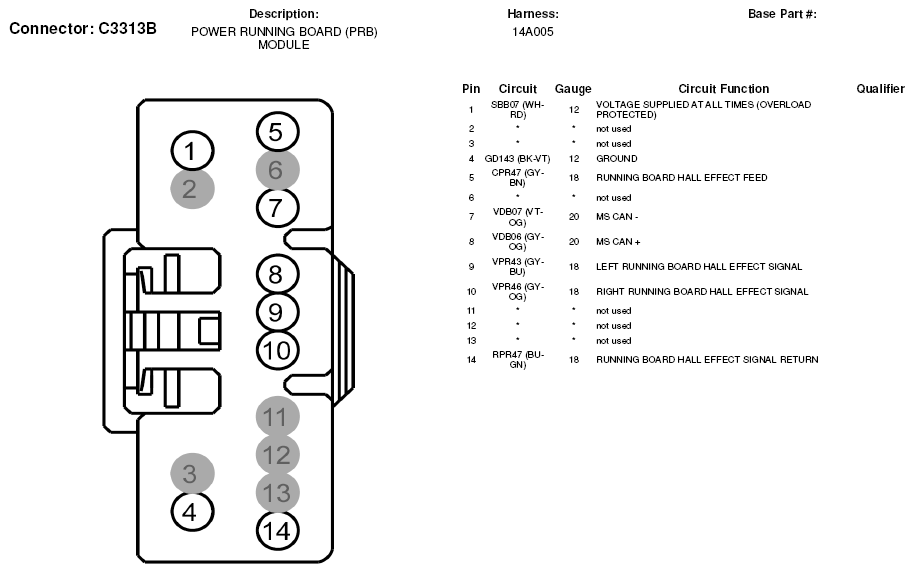

Fig 2: Power Running Board Module Connector End View (C3313B)

G05600098
