Satellite Digital Audio Receiver System Module Connector
Satellite Digital Audio Receiver System Module Connector

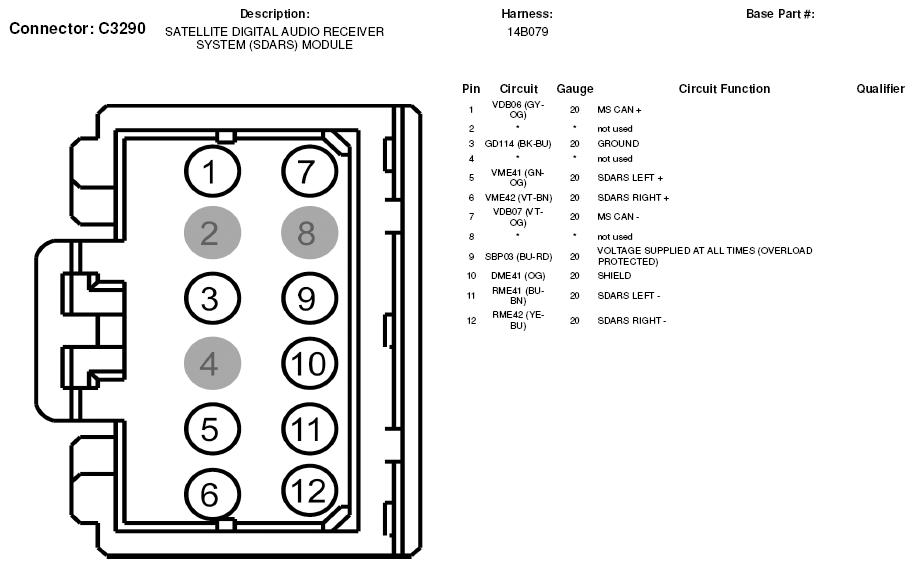

Fig 1: Satellite Digital Audio Receiver System Module Connector End View (C3290)
