Sunload Sensor Connector
Sunload Sensor Connector

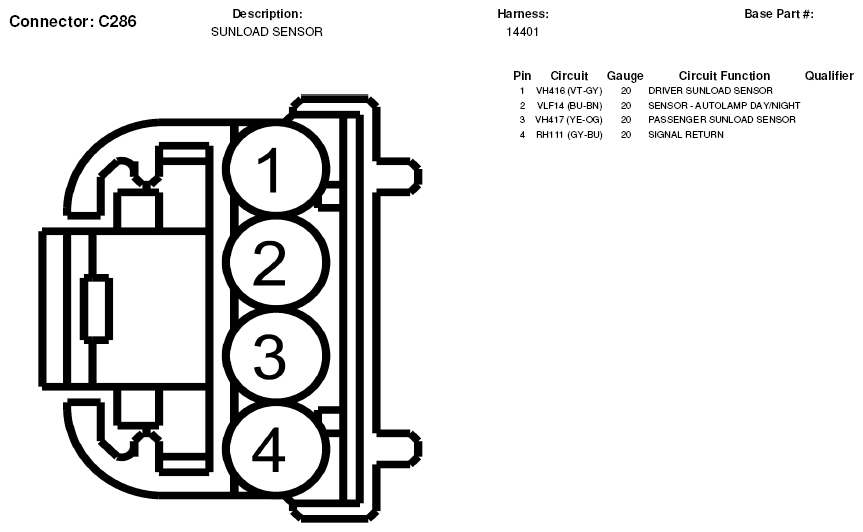

Fig 1: Sunload Sensor Connector End View (C286)
Fig 2: Sunload Sensor Connector End View (C2360)
