Throttle Position Sensor Connector
Throttle Position Sensor Connector

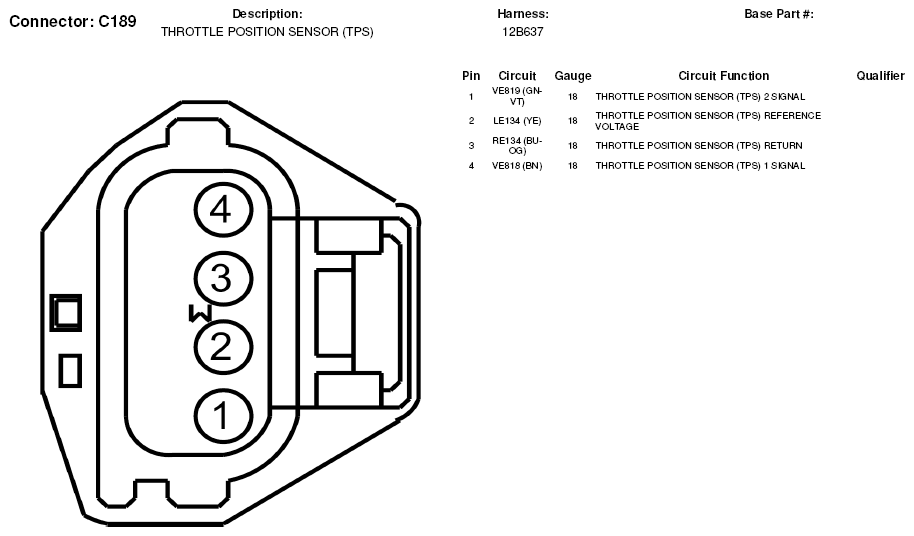

Fig 1: Throttle Position Sensor Connector End View (C189)
