Powertrain Control Module (PCM): Notes

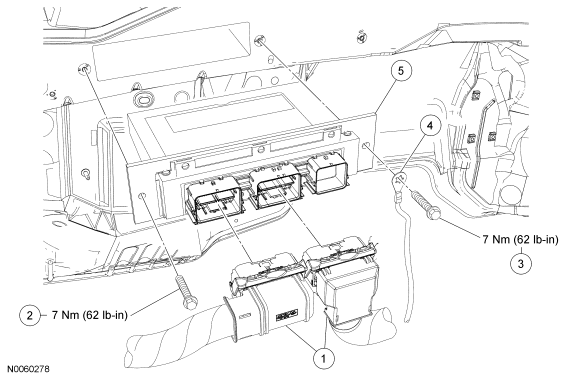

Fig 1: Exploded View Of Powertrain Control Module PCM With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	PCM electrical connectors (2 required)
2	W505428	PCM bolt
3	W505428	PCM bolt
4	W505428	Ground cable
5	AAA1001	PCM
