Compressor to Condenser Discharge Line: Notes

Material

Item	Specification
PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D	WSH-M1C231-B

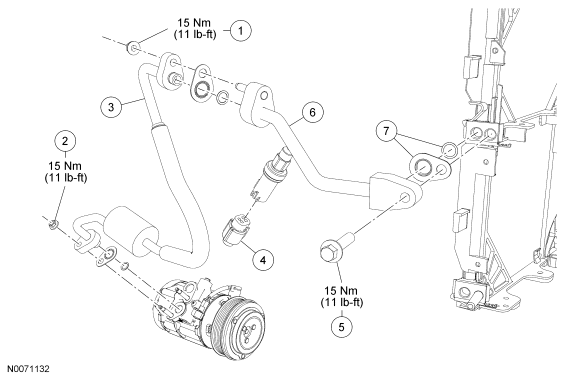

Fig 1: Exploded View Of Compressor to Condenser Discharge Line With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W520413	Condenser inlet jumper line fitting nut
2	W520413	Compressor discharge fitting nut
3	19972	Compressor-to-condenser line
4	-	A/C pressure transducer electrical connector (part of 12A581)
5	W500110	Condenser inlet fitting bolt
6	19E558	Condenser inlet jumper line
7	19B596	O-ring seal and gasket seal kit (3 required)
