Plenum Chamber: Notes

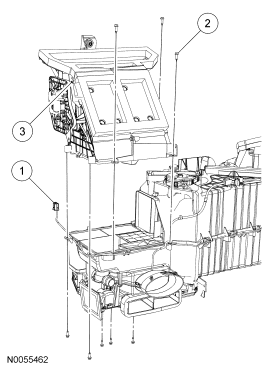

Fig 1: Exploded View Of Plenum Chamber

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	18B518	Mode door actuator electrical connector (part of 18B518)
2	W701696	Plenum chamber screw (8 required)
3	18471	Plenum chamber
