Driver 1 Safety Canopy Sensor Connector
Driver 1 Safety Canopy Sensor Connector

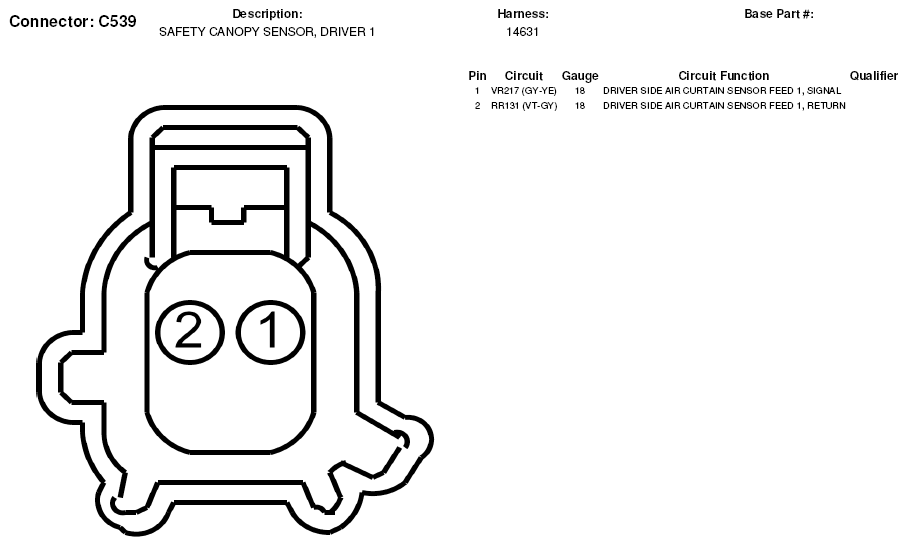

Fig 1: Driver 1 Safety Canopy Sensor Connector End View (C539)
