Driver 2 Safety Canopy Sensor Connector
Driver 2 Safety Canopy Sensor Connector

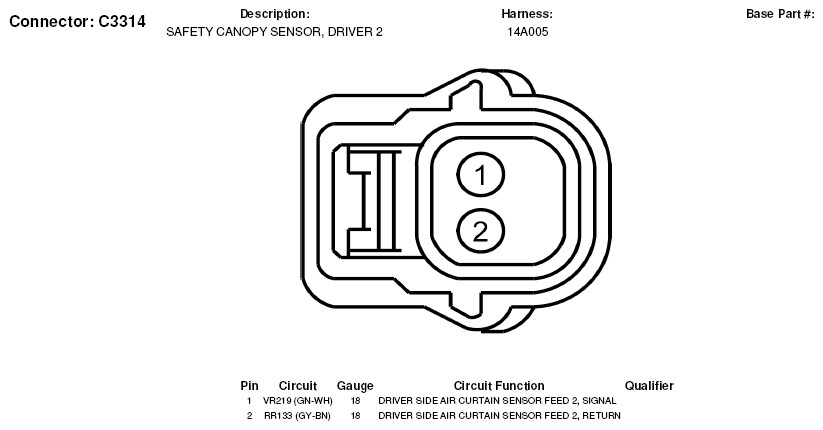

Fig 1: Driver 2 Safety Canopy Sensor Connector End View (C3314)
