Front Impact Severity Sensor Connectors
Front Impact Severity Sensor Connectors

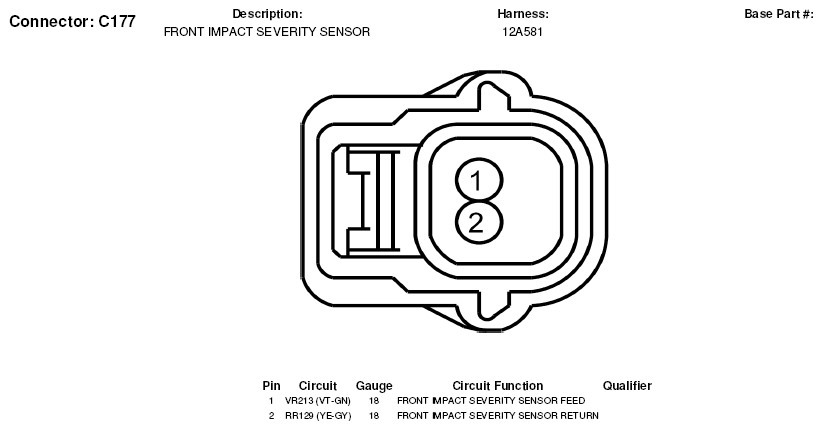

Fig 1: Front Impact Severity Sensor Connector End View (C177)
