Left Steering Wheel Switch Connector

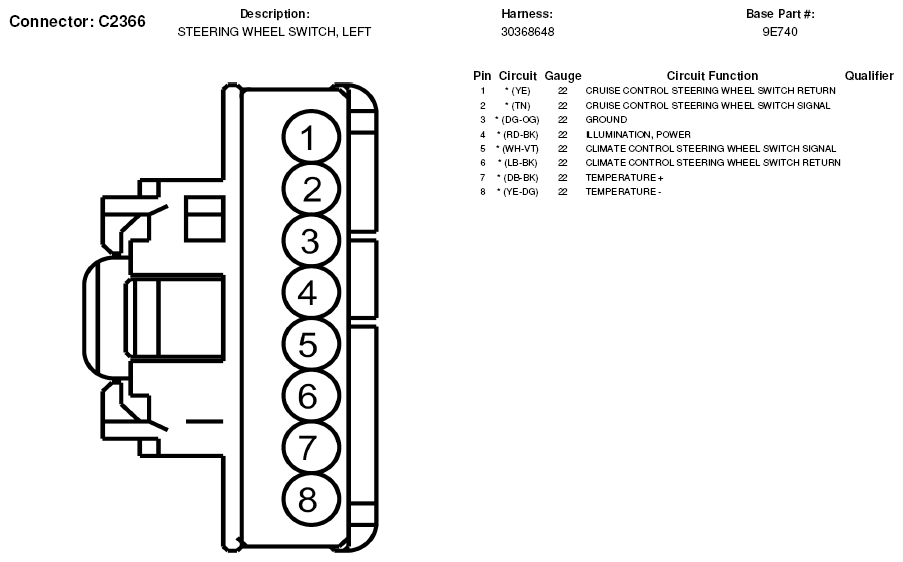

Fig 1: Left Steering Wheel Switch Connector End View (C2366)

G05600056

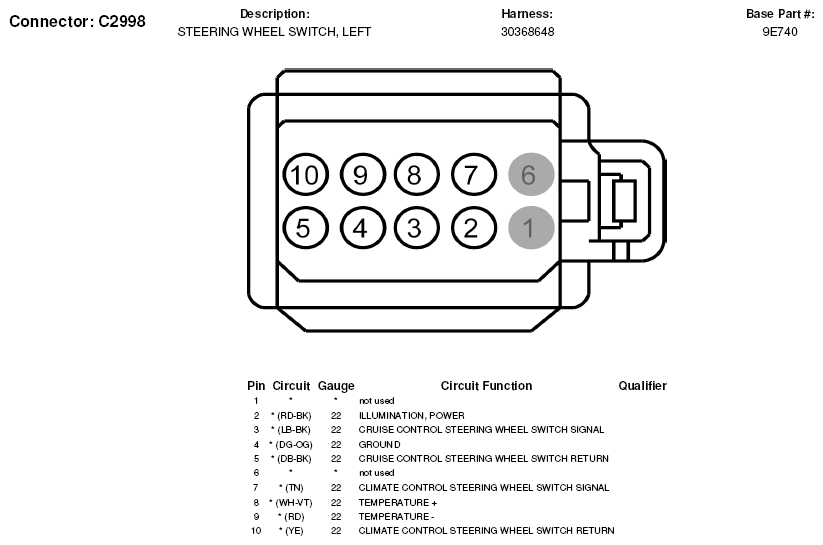

Fig 2: Left Steering Wheel Switch Connector End View (C2998)

G05600058
