Audio Control Module Connector

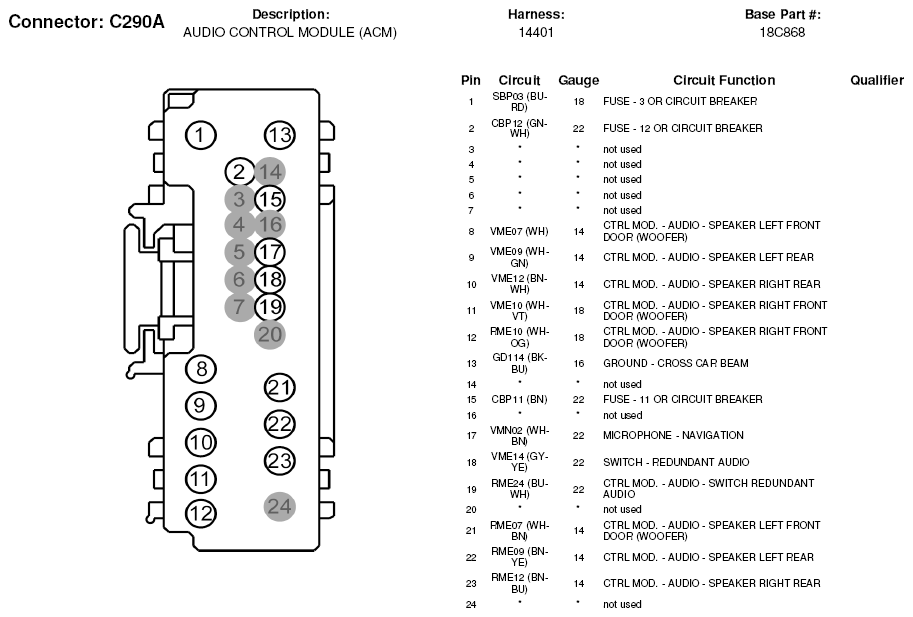

Fig 1: Audio Control Module Connector End View (C290A)

G05600672

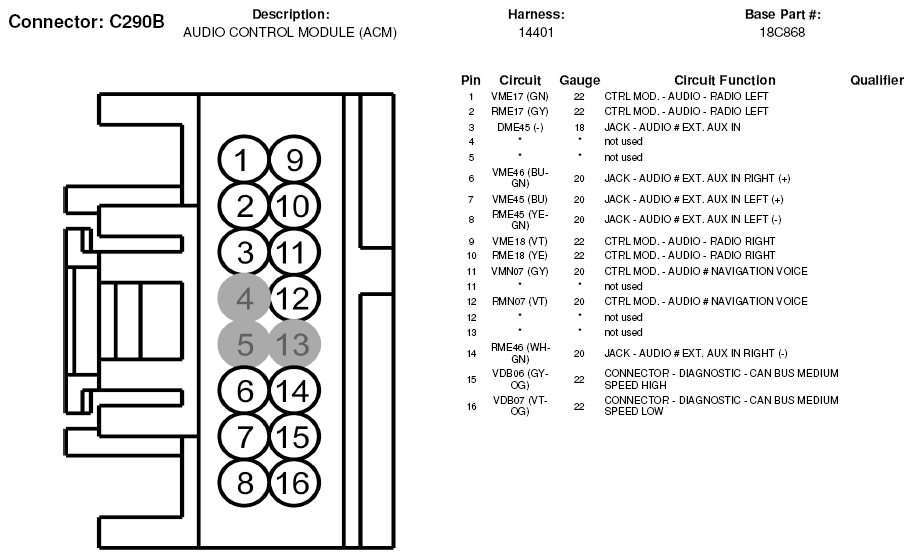

Fig 2: Audio Control Module Connector End View (C290B)

G05600673

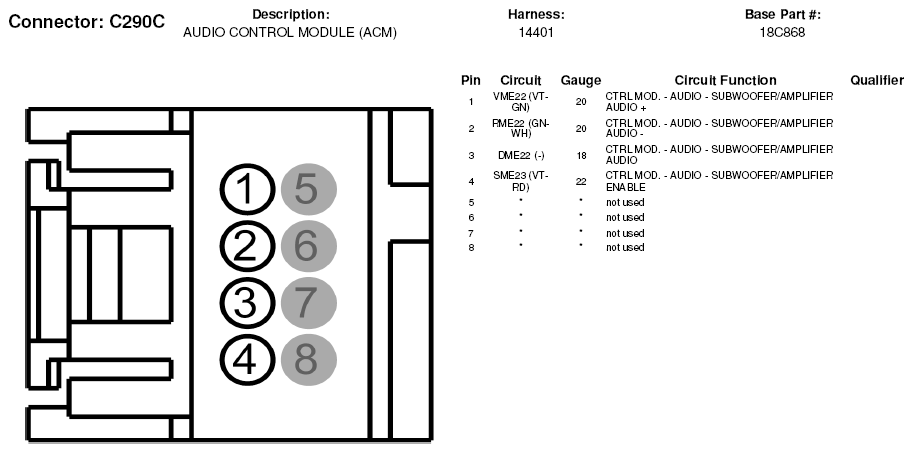

Fig 3: Audio Control Module Connector End View (C290C)

G05600674
