Four Wheel Drive Control Module Connector
Four Wheel Drive Control Module Connector

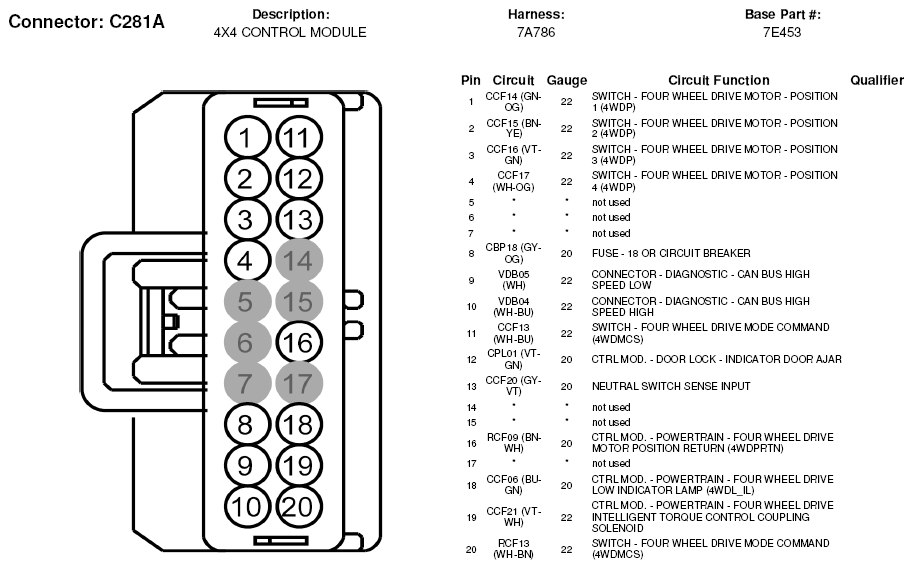

Fig 1: Four Wheel Drive Control Module Connector End View (C281A)

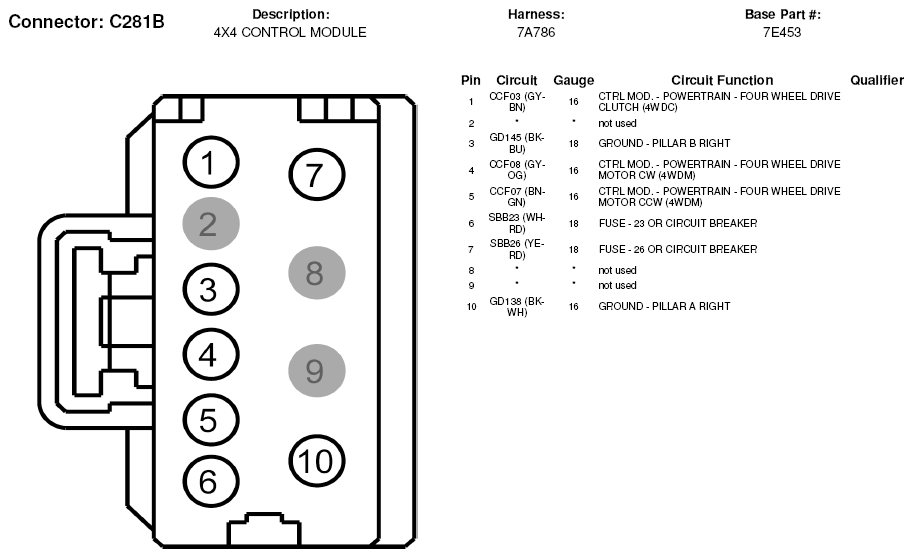

Fig 2: Four Wheel Drive Control Module Connector End View (C281B)
