Restraints Control Module Connector
Restraints Control Module Connector

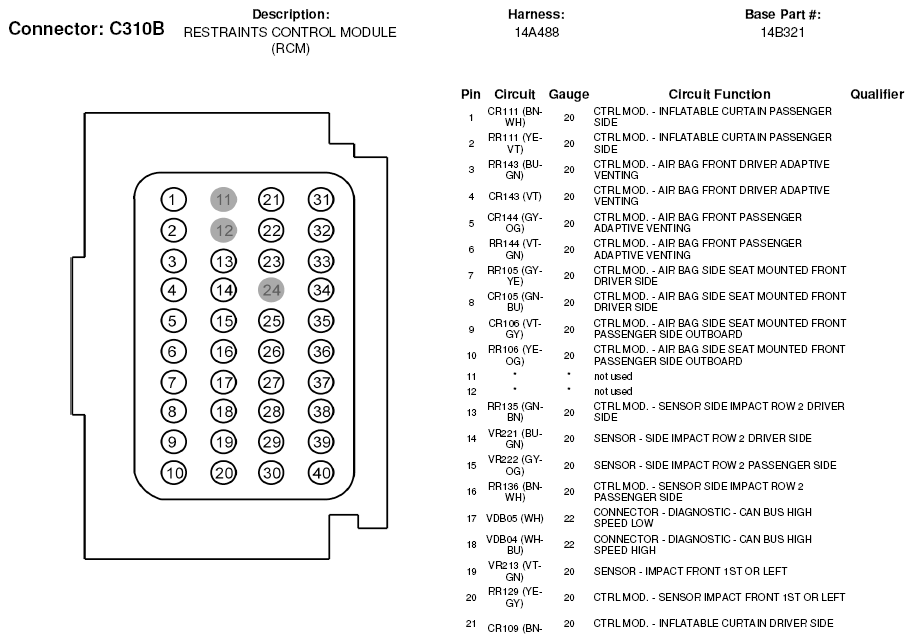

Fig 1: Restraints Control Module Connector End View (C310B) (1 Of 2)

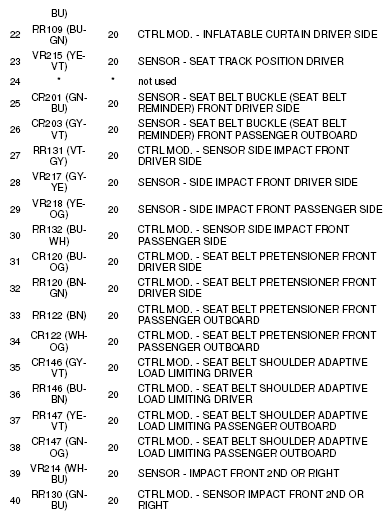

Fig 2: Restraints Control Module Connector End View (C310B) (2 Of 2)
