Restraints Control Module Connectors

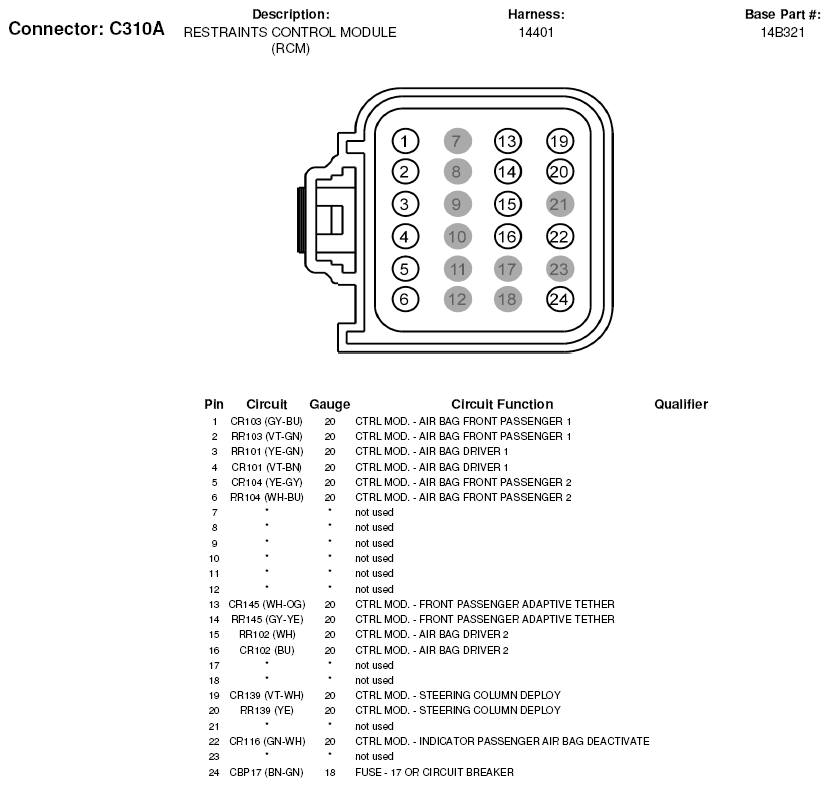

Fig 1: Restraints Control Module Connector End View (C310A)
G05600681
