Trailer Brake Control Module Connector
Trailer Brake Control Module Connector

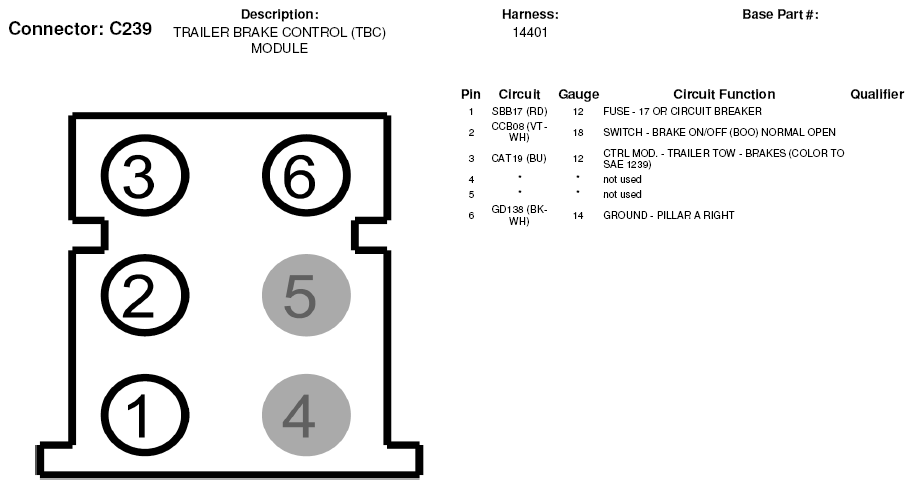

Fig 1: Trailer Brake Control Module Connector End View (C239)
