Seat Backrest - Third Row: Notes
NOTE:

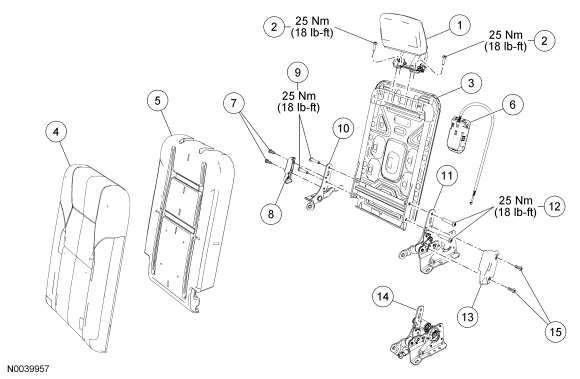

RH backrest shown, LH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 611A08 | Head restraint |
| 2 | - | Head restraint-to-backrest frame bolts (2 required) (part of 605C10) |
| 3 | 613A38 | Backrest frame |
| 4 | 66600 | Backrest trim cover |
| 5 | 66800 | Backrest foam pad |
| 6 | 62418 | Backrest release handle (if equipped) |
| 7 | - | Hinge cover screws (2 required) (part of 605C10) |
| 8 | 61348 | Hinge cover |
| 9 | - | Hinge-to-backrest frame bolts (2 required) (part of 605C10) |
| 10 | 61382 | Hinge |
| 11 | 61382 | Manual latch |
| 12 | - | Latch-to-backrest frame bolts (manual and power) (2 required) (part of 605C10) |
| 13 | 61349 | Latch cover |
| 14 | 61382 | Power latch |
| 15 | - | Latch cover screws (2 required) (part of 605C10) |
