Window Control Switch: Notes

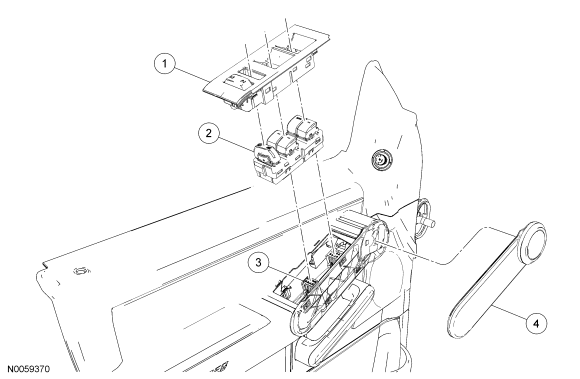

Fig 1: Exploded View Of Window Control Switch
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
14A464B
Window control switch bezel
2
14529
Window control switch
3
14524 RH/ 14525 LH
Window control switch electrical connectors
4
14A563 RH/ 14A564 LH
Interior door handle cover
