Window Glass - Liftgate: Notes

Material

Item	Specification
Threadlock 262 TA-26	WSK-M2G351-A6

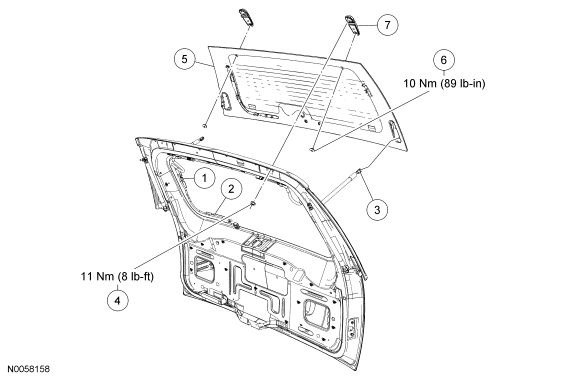

Fig 1: Exploded View Of Liftgate Window Glass With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	17A413 RH/ 18C673 LH	Heated rear window grid electrical wire
2	-	Rear window glass electrical connector
3	7842105 RH/ 7842104 LH	Liftgate window glass strut
4	N621926	Liftgate window glass hinge-to-body retaining nut (2 required)
5	7842004	Liftgate window glass
6	-	Liftgate hinge-to-glass screw (2 required)
7	78420A68 RH / 78420A69 LH	Liftgate hinge
