Audio Control Switch Connector
Audio Control Switch Connector

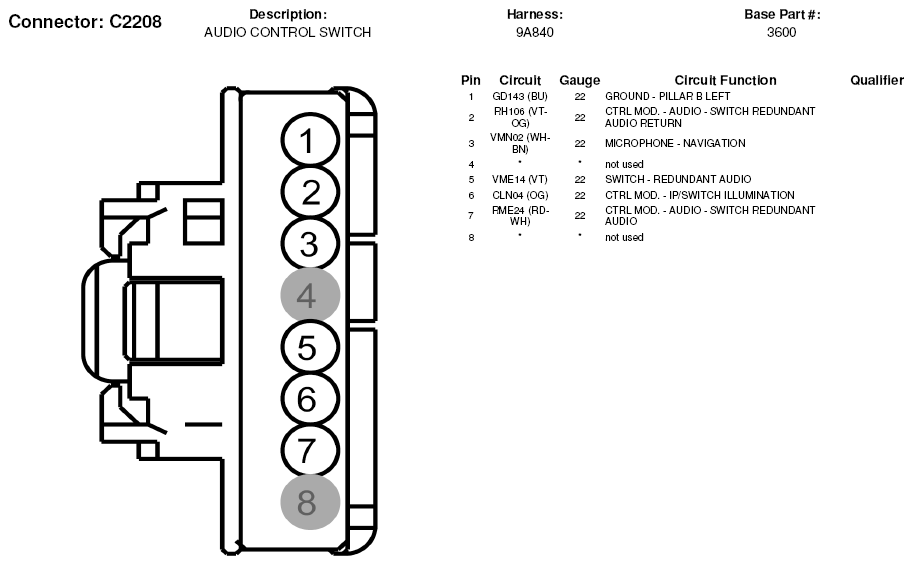

Fig 1: Audio Control Switch Connector End View (C2208)
