Driver Seat Module Connector

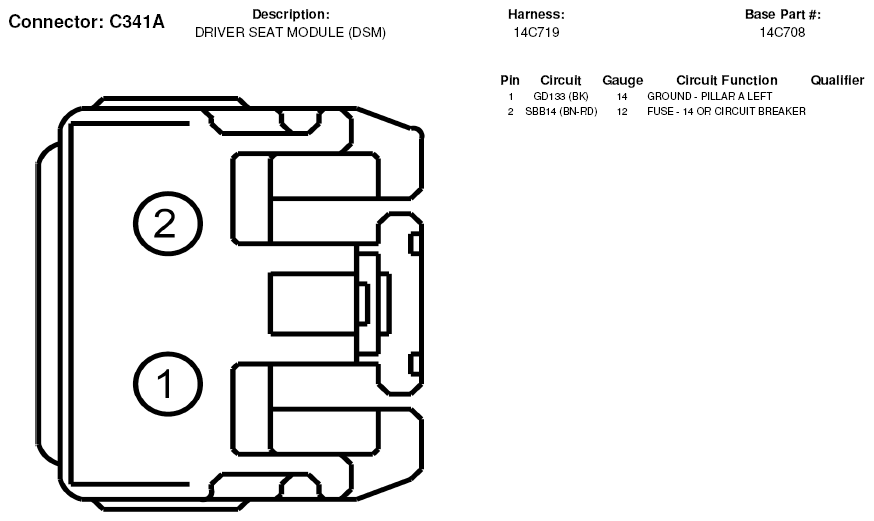

Fig 1: Driver Seat Module Connector End View (C341A)

G05600702

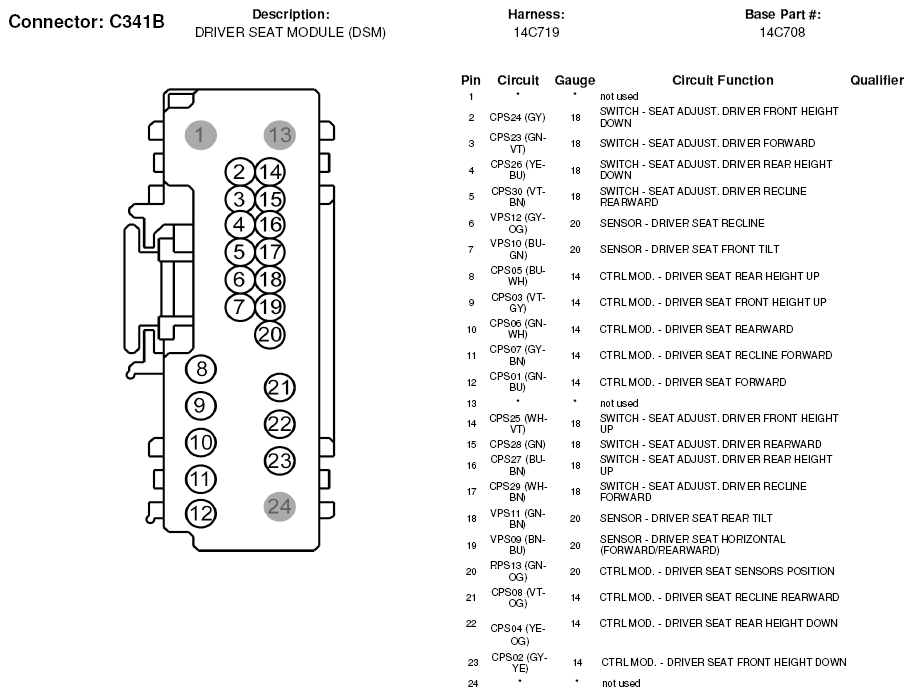

Fig 2: Driver Seat Module Connector End View (C341B)

G05600703

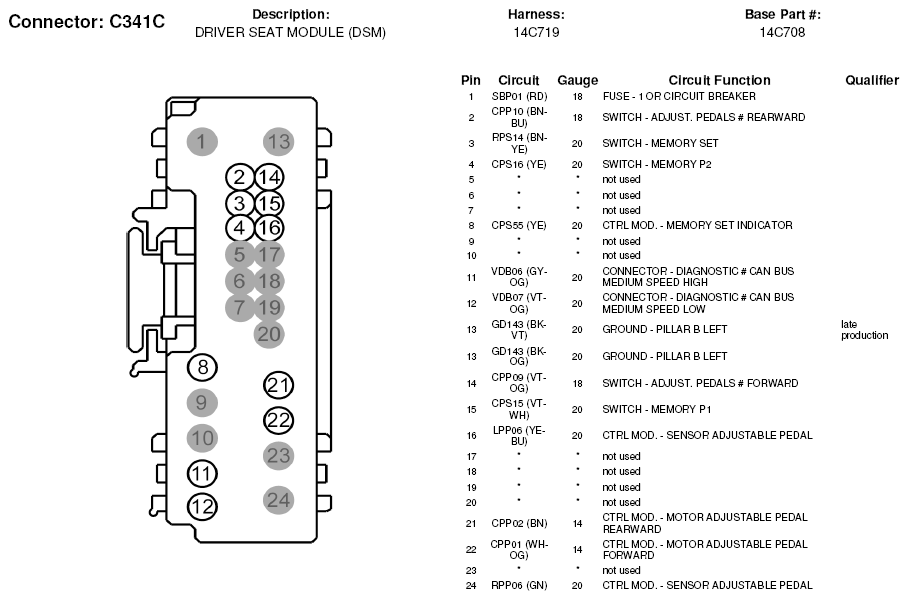

Fig 3: Driver Seat Module Connector End View (C341C)

G05600704
