Intake Manifold Runner Control Connector

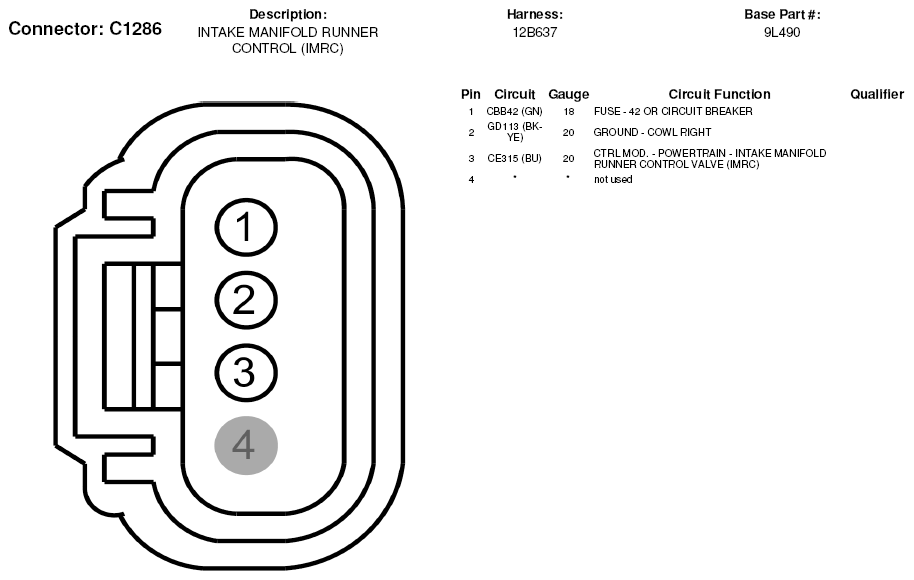

Fig 1: Intake Manifold Runner Control Connector End View (C1286)
G05600841
