Parking Aid Module Connector

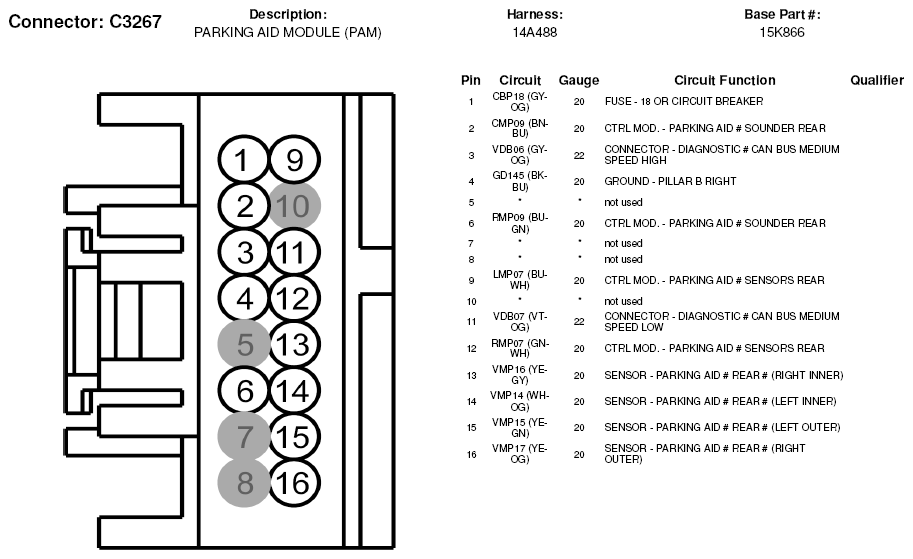

Fig 1: Parking Aid Module Connector End View (C3267)

G05600916

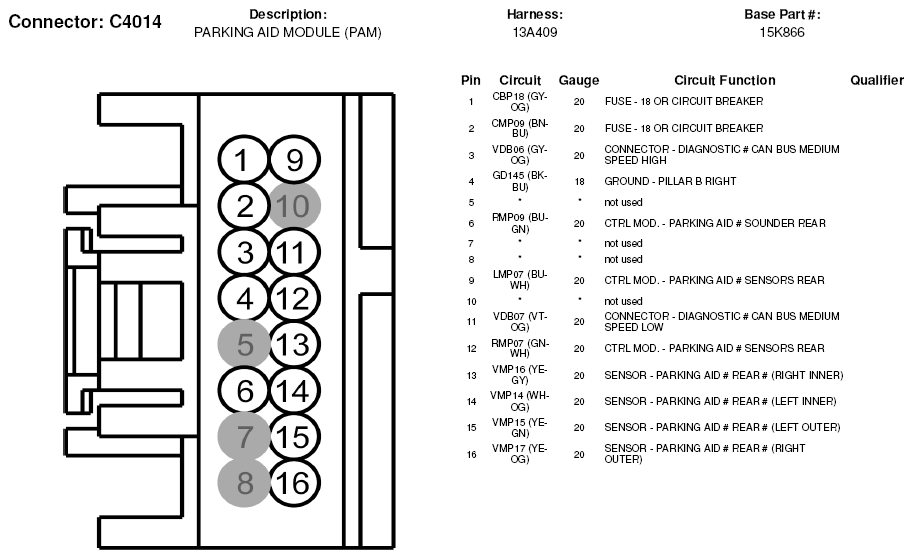

Fig 2: Parking Aid Module Connector End View (C4014)

G05600931

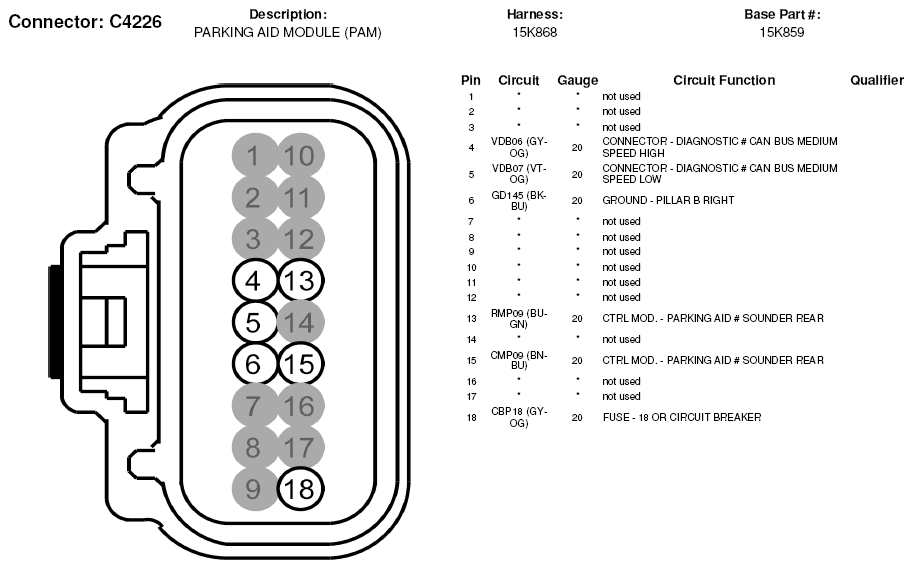

Fig 3: Parking Aid Module Connector End View (C4226)

G05600946
