Passenger Adaptive Tether Connector
Passenger Adaptive Tether Connector

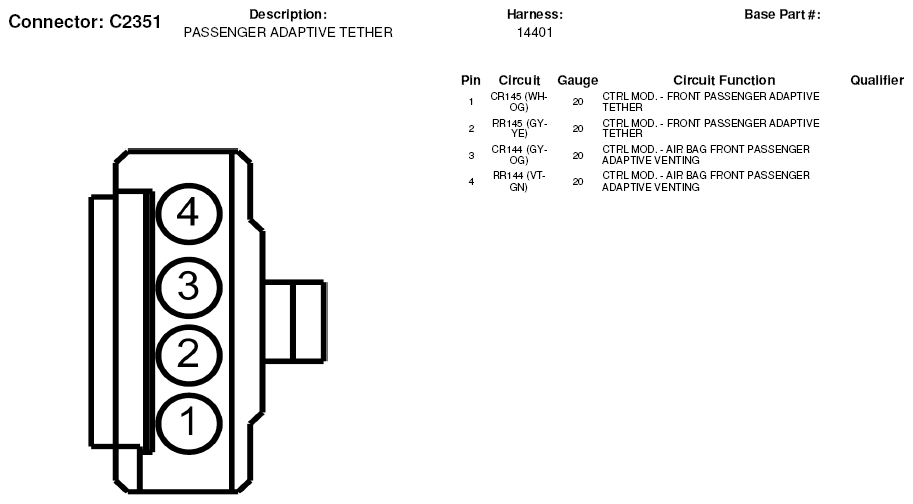

Fig 1: Passenger Adaptive Tether Connector End View (C2351)
