Right Side Airbag Module Connector
Right Side Airbag Module Connector

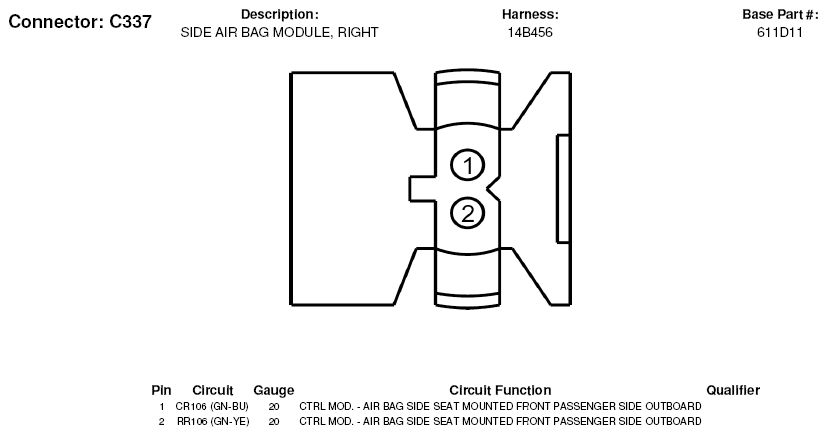

Fig 1: Right Side Airbag Module Connector End View (C337)
