Instrument Panel - Exploded View

NOTE: Explorer/Explorer Sport Trac shown, Mountaineer similar.

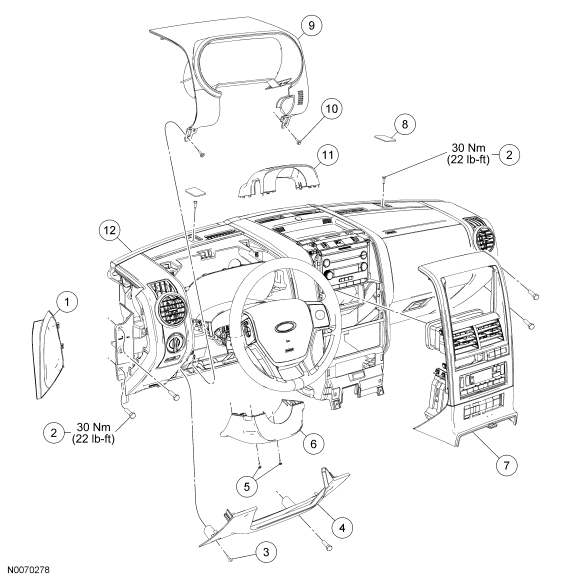

Fig 1: Instrument Panel Components - Exploded View With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	04480 RH/ 04481 LH	Instrument panel side finish panel (2 required)
2	W706246	Instrument panel bolts (6 required)
3	W707628	Steering column opening cover screw (2 required)
4	04459	Steering column opening cover
5	-	Steering column cover screws (2 required)
6	3530	Lower steering column cover
7	04302	Instrument panel center finish panel
8	044F58	Instrument panel upper cowl bolt cover (2 required)
9	044D70	Instrument cluster finish panel
10	W705314	Instrument cluster finish panel screw (2 required)
11	3530	Upper steering column cover
12	04320	Instrument panel

1. For additional information, refer to the procedures in this article.
