Home › Ford › 2008 › Fusion S, Automatic › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Connector Views › Coupler Assembly 1 Connector

Coupler Assembly 1 Connector

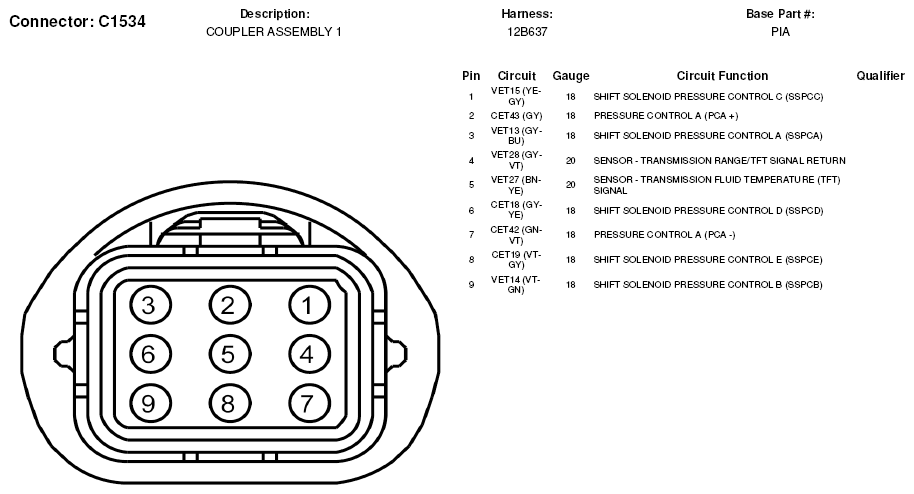

Fig 1: Coupler Assembly 1 Connector End View (C1534)
G05602615
