Instrument Panel - Exploded View

NOTE: Fusion shown, Milan similar.

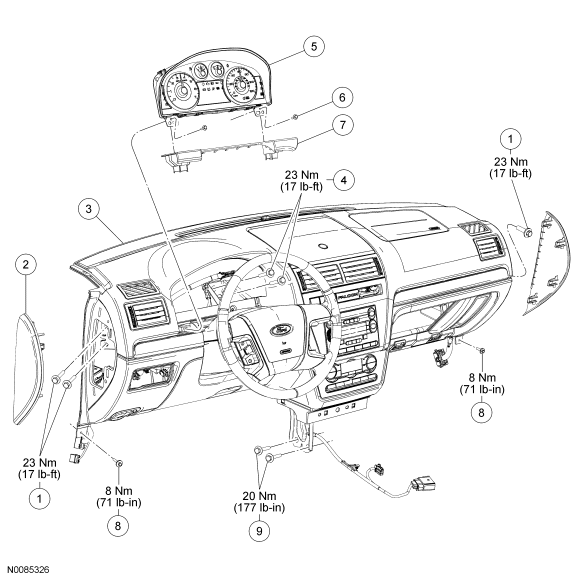

Fig 1: Exploded View Of Instrument Panel With Torque Specifications - Fusion/Milan

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W701834	Instrument panel side bolts (3 required)
2	04480 RH/ 04481 LH	Instrument panel side finish panel
3	04320	Instrument panel upper section
4	W701834	Instrument cluster opening bolts (2 required)
5	10849	Instrument cluster
6	W705314	Instrument cluster screw (2 required)
7	044D70	Instrument cluster finish panel
8	W708268	Instrument panel lower bolts (2 required)
9	N811479	Instrument panel center support bolts (2 required)

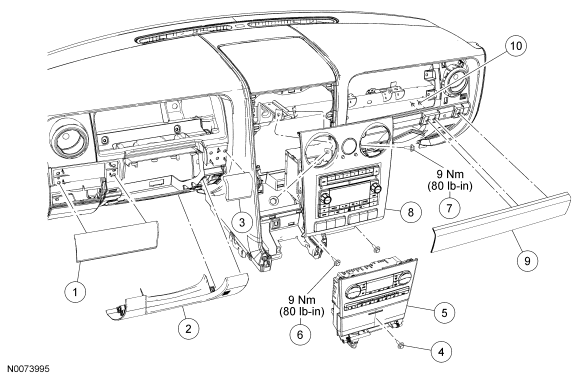

Fig 2: Exploded View Of Instrument Panel Finish Panels - Fusion/Milan

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	54046A77	Demister bezel (2 required)
2	04338	LH instrument panel finish molding
3	04459	Steering column opening trim cover
4	044A90A	Center instrument panel finish molding
5	04302	Upper center instrument panel finish panel
6	04608	Lower center instrument panel finish panel
7	044A90B	RH instrument panel finish molding
8	W705314	Upper storage bin screw (2 required)
9	13594	Upper storage bin
10	045G34	Upper storage bin mat

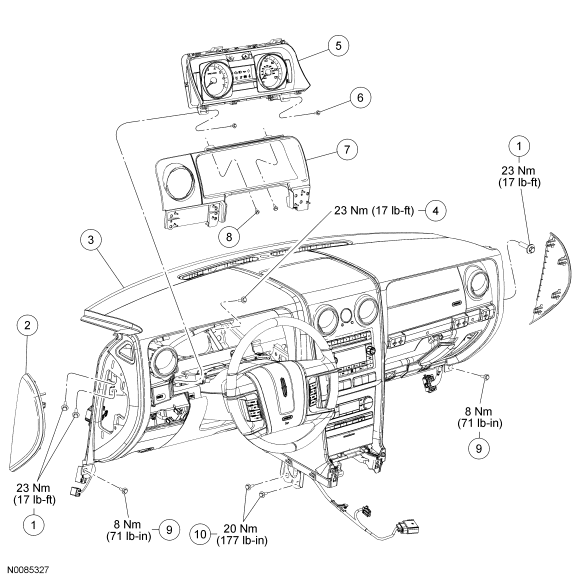

Fig 3: Exploded View Of Instrument Panel With Torque Specifications - MKZ

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W701834	Instrument panel side bolts (3 required)
2	04480 RH/ 04481 LH	Instrument panel side finish panel
3	04320	Instrument panel upper section
4	W701834	Instrument cluster opening bolt (2 required)
5	10849	Instrument cluster
6	W705314	Instrument cluster screw (2 required)
7	044D70	Instrument cluster finish panel
8	W505155	Instrument cluster finish panel screw (2 required)
9	W708268	Instrument panel lower bolts (2 required)
10	N811479	Instrument panel center support bolts (2 required)

Fig 4: Exploded View Of Instrument Panel Finish Panels With Torque Specifications - MKZ

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	044A90A	LH instrument panel finish molding
2	04459	Steering column opening trim panel
3	04388	Center instrument panel finish molding
4	W705314	Lower center instrument panel finish panel screw
5	04608	Lower center instrument panel finish panel
6	W505422	Upper center instrument panel finish panel lower screw (2 required)
7	W505422	Upper center instrument panel finish panel upper screw (2 required)
8	04302	Upper center instrument panel finish panel
9	044A90B	RH instrument panel finish molding
10	W706675	RH instrument panel finish molding nut (aluminum)
10	W704831	RH instrument panel finish molding clip (wood)

Fig 5: Exploded View Of Glove Compartment

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	060T10	Glove compartment
2	-	Glove compartment damper clip (part of 06102)
3	06010	Glove compartment mini-bin
4	W505152	Glove compartment damper screw (2 required)
5	06102	Glove compartment damper
