Exterior Mirrors - Exploded View

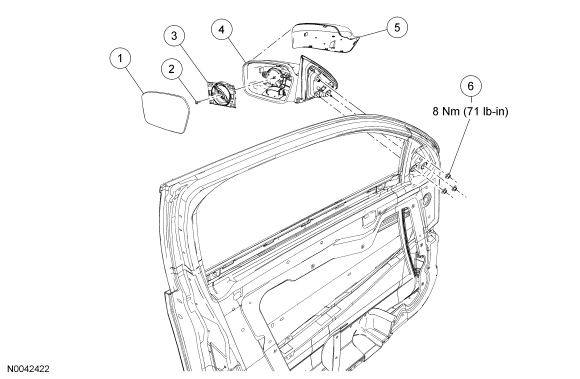

Fig 1: Exploded View Of Exterior Mirrors With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	17K707	Exterior mirror glass
2	-	Exterior mirror motor screw
3	17D696	Exterior mirror motor
4	17682	Exterior mirror
5	17D742	Exterior mirror cover
6	N621906	Exterior mirror nut (3 required)

1. For additional information, refer to the procedures.
