Right Front Power Window Motor Connector
Right Front Power Window Motor Connector

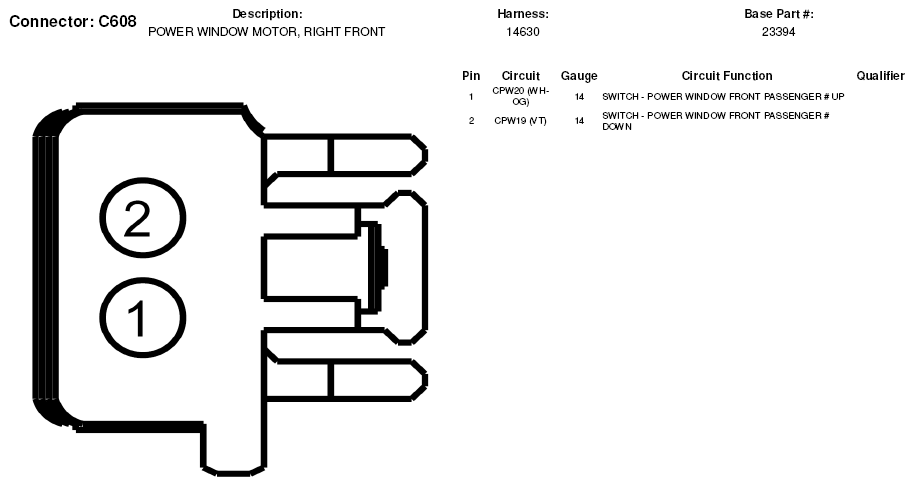

Fig 1: Right Front Power Window Motor Connector End View (C608)

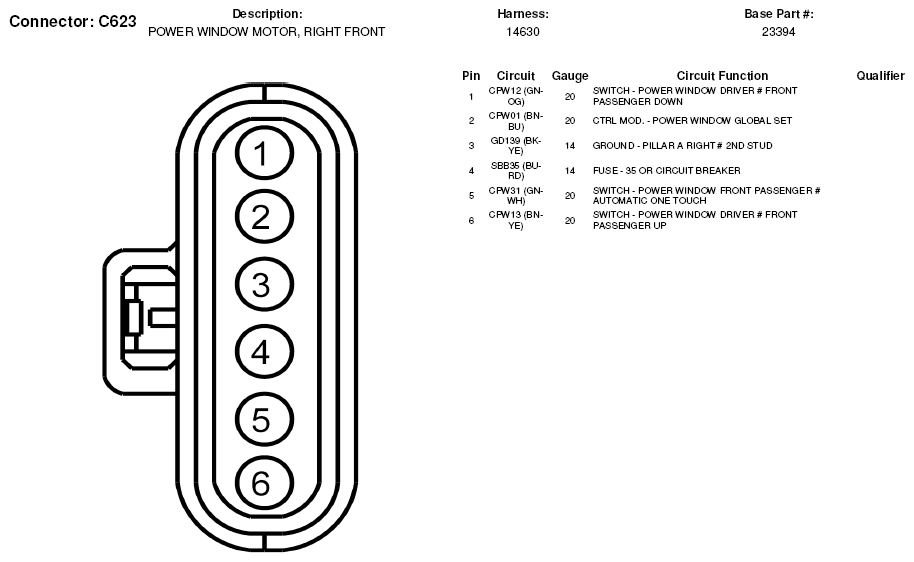

Fig 2: Right Front Power Window Motor Connector End View (C623)
