Home › Ford › 2008 › Fusion S, Standard › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Connector Views › Right Front Tweeter Connector

Right Front Tweeter Connector

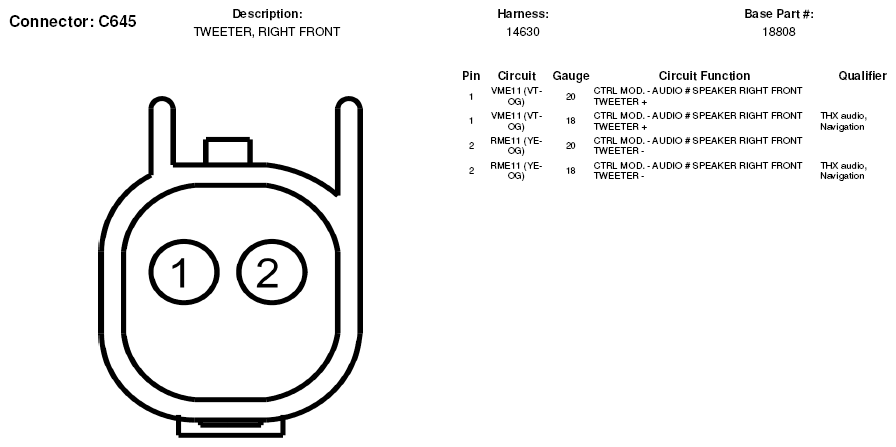

Fig 1: Right Front Tweeter Connector End View (C645)
G05602556
