Block Heater: Notes

WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

2.3L

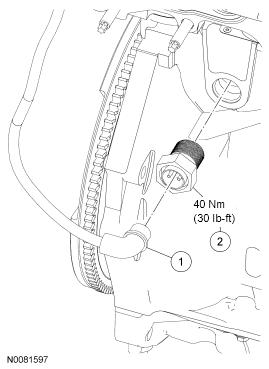

Fig 1: Exploded View Of Block Heater With Torque Specification - 2.3L

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	6B018	Block heater electrical connector
2	6A051	Block heater

3.0L

Fig 2: Exploded View Of Block Heater With Torque Specification - 3.0L

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	6B018	Block heater electrical connector
2	6A051	Block heater

3.5L

Fig 3: Exploded View Of Block Heater With Torque Specification - 3.5L

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	030104	Block heater cover
2	6B018	Block heater electrical connector
3	6A051	Block heater
