Vehicle Speed Sensor (VSS): Notes

Material

Item	Specification
SAE 75W-90 Premium Gear Oil XY-75W90-QGL	WSS-M2C203-A1

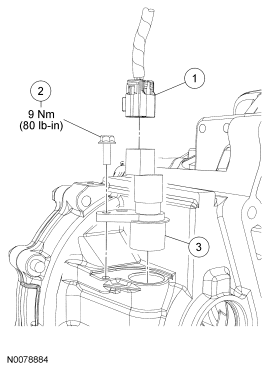

Fig 1: Exploded View Of Vehicle Speed Sensor (VSS) With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14487	Vehicle speed sensor (VSS) electrical connector
2	-	VSS bolt
3	17271	VSS
