Audio Control Module Connector

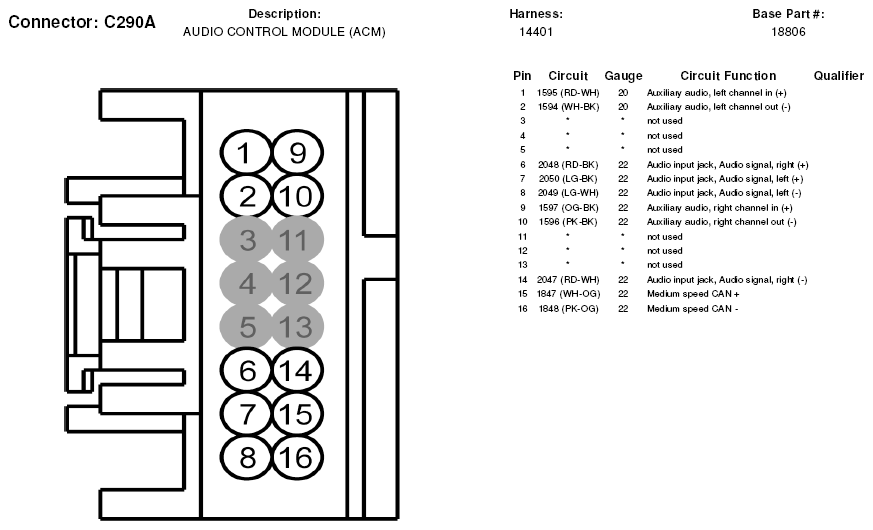

Fig 1: Audio Control Module Connector End View (C290A)

G05602837

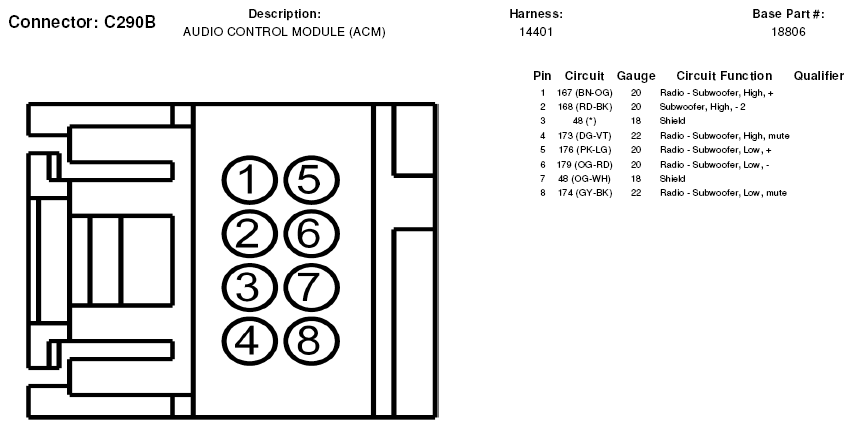

Fig 2: Audio Control Module Connector End View (C290B)

G05602838

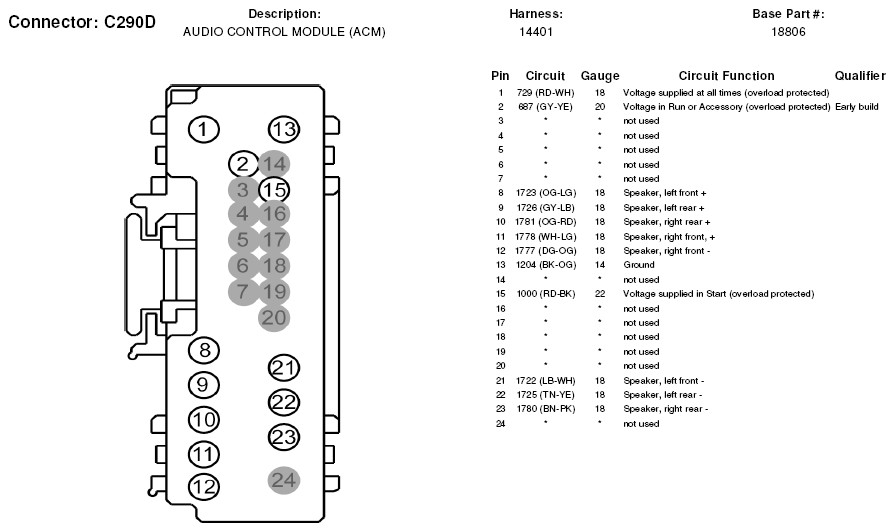

Fig 3: Audio Control Module Connector End View (C290D)

G05602839
