Wheel Speed Sensor - Rear: Notes

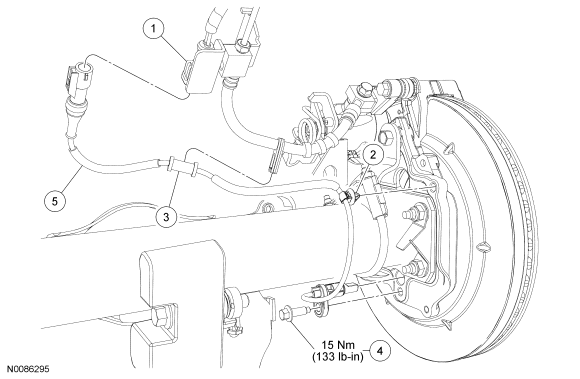

Fig 1: Exploded View Of Rear Wheel Speed Sensor With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Wheel speed sensor electrical connector (part of 14407)
2	-	Wheel speed sensor harness pin-type retainer (part of 2C190)
3	-	Wheel speed sensor grommet retainer (part of 2C190)
4	W500223	Wheel speed sensor bolt
5	2C190	Wheel speed sensor
