Ambient Lighting Module Connector

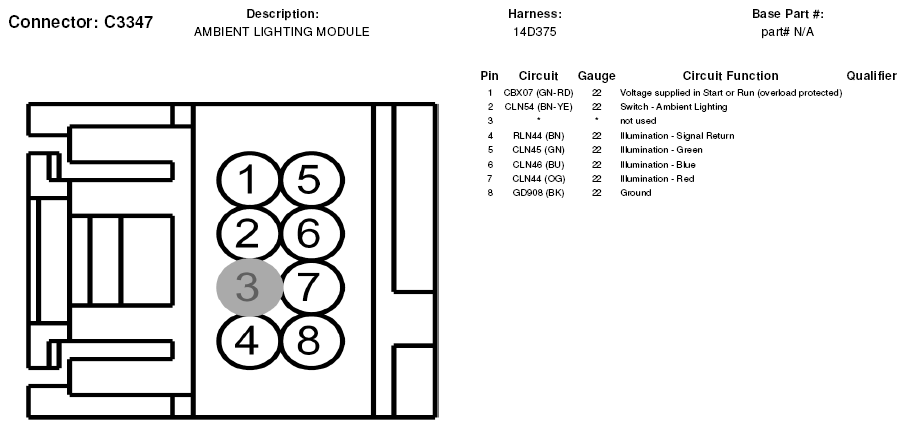

Fig 1: Ambient Lighting Module Connector End View (C3347)
G05603001
