Home › Ford › 2008 › Mustang Base, 2D Convertible, Automatic › Repair and Diagnosis › Electrical › Body Electrical › OEM Connector End Views › Connector Views › Intake Manifold Running Control Connector

Intake Manifold Running Control Connector

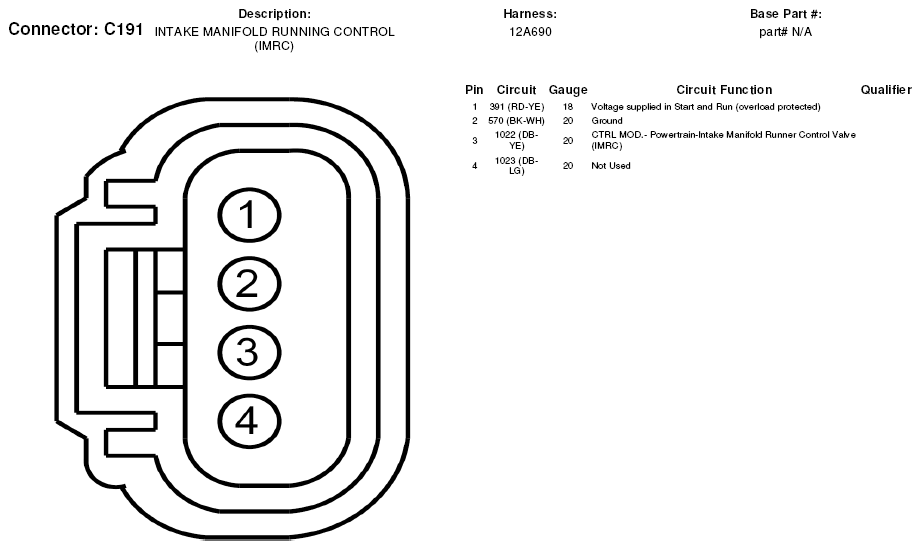

Fig 1: Intake Manifold Running Control Connector End View (C191)
G05602808
