Secondary Fuel Pump Driver Module Connector
Secondary Fuel Pump Driver Module Connector

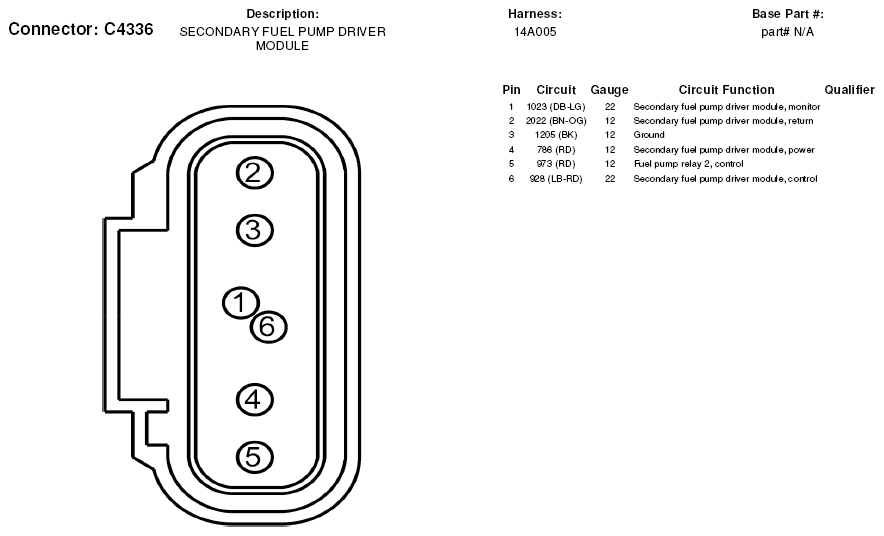

Fig 1: Secondary Fuel Pump Driver Module Connector End View (C4336)
