Windshield Glass: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Interior Auto Glass Cut-Out Knife Kit | 164-R2450 or equivalent | |
| Rotunda Pneumatic Knife with Offset Blade | 164-R1511 or equivalent | |
| The Pumper | 164-R2459 or equivalent |
Material
| Item | Specification |
|---|---|
| DOW AUTOMOTIVE 2-HOUR CURE |
|
| Dow Urethane Adhesive Betaseal® Express |
- |
| Dow Urethane One Step Glass Primer Betaprime® 5500 / 5500A / 5500SA |
- |
| SIKA 2-HOUR CURE |
|
| Sika Urethane Adhesive Sika Tack ASAP |
- |
| Sika Urethane Metal and Glass Primer Sika 206 G+P |
- |
| Ultra-Clear Spray Glass Cleaner ZC-23 |
ESR-M14P5-A |

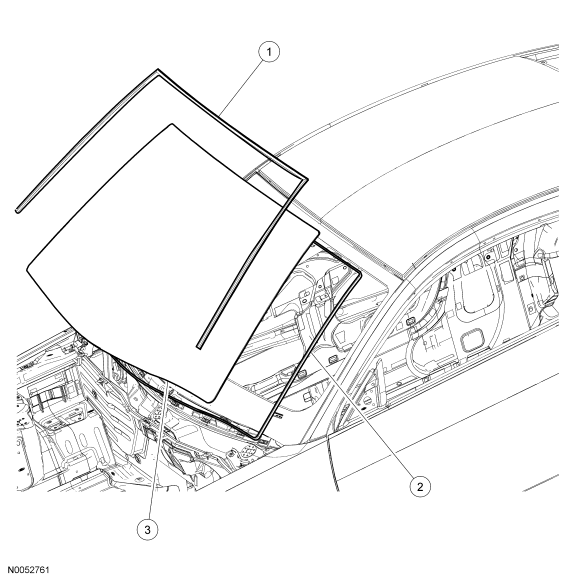

| Item | Part Number | Description |
|---|---|---|
| 1 | 7603110 | Windshield glass molding (may be serviced separately and is included with new windshield glass assembly) |
| 2 | - | Urethane adhesive |
| 3 | 6303100 | Windshield glass assembly (new assembly includes windshield glass molding) |
