Occupant Classification System Module Connector - C3043

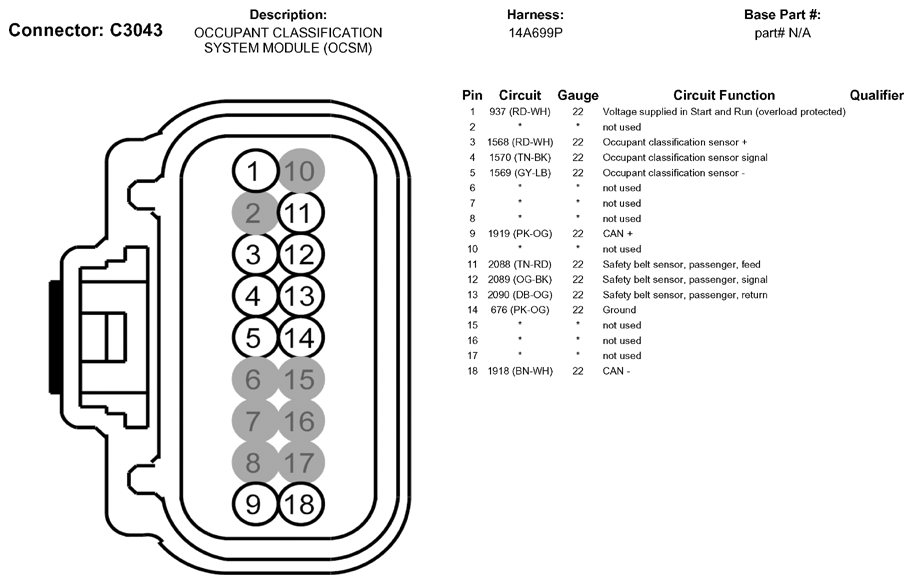

Fig 1: Occupant Classification System Module Connector End View - (C3043)
G05791503Courtesy of FORD MOTOR CO.
