Anti-Lock Brake System Module Connector - C135

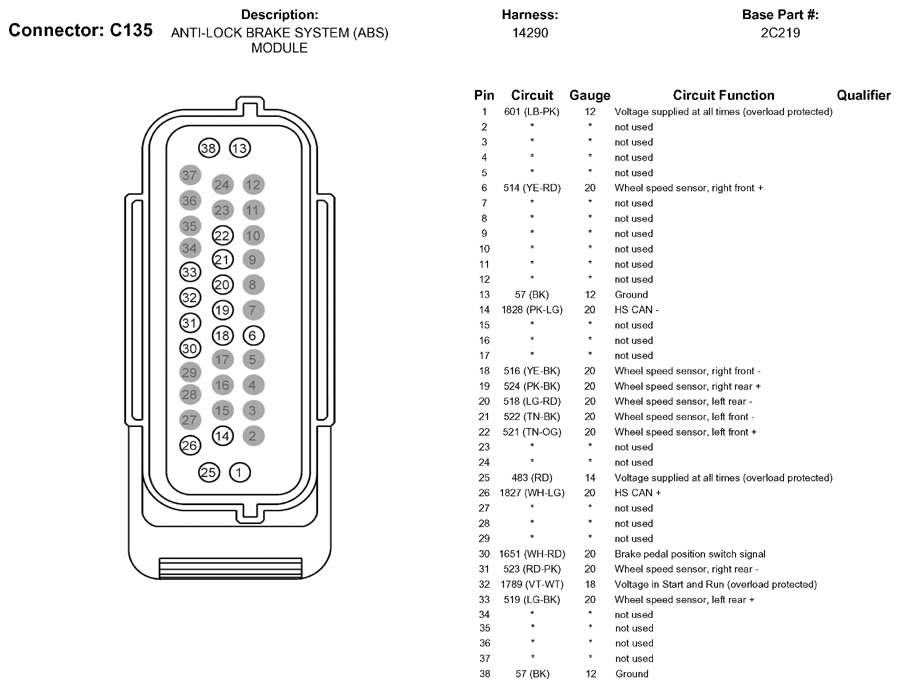

Fig 1: Anti-Lock Brake System Module Connector End View - (C135)
G05791244Courtesy of FORD MOTOR CO.
