Glow Plug Bus Bar Connector Pin Reference Chart

GLOW PLUG BUS BAR CONNECTOR PIN REFERENCE CHART

Pin	Circuit
4	Glow Plug Number 7
3	Glow Plug Number 5
2	Glow Plug Number 3
1	Glow Plug Number 1

Bank 2

Fig 1: Identifying Glow Plug Bus Bar Connector

Courtesy of FORD MOTOR CO.

GLOW PLUG BUS BAR CONNECTOR PIN REFERENCE CHART

Pin	Circuit
4	Glow Plug Number 8
3	Glow Plug Number 6
2	Glow Plug Number 4
1	Glow Plug Number 2

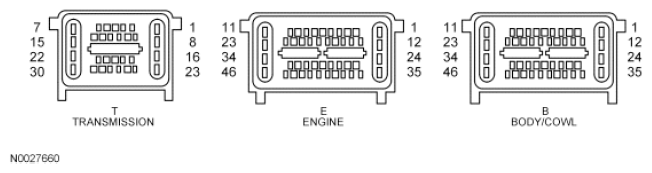

Fig 1: Identifying Powertrain Control Module (PCM) Connector

Courtesy of FORD MOTOR CO.
