Engine Front
WARNING: This page is about a different car, the 2009 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.

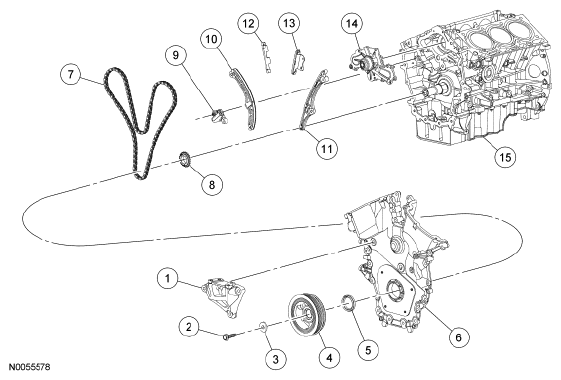

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 6A0003 | Engine mount bracket |
| 2 | W701512 | Crankshaft pulley bolt |
| 3 | N806165 | Crankshaft pulley washer |
| 4 | 6316 | Crankshaft pulley |
| 5 | 6700 | Crankshaft front seal |
| 6 | 6C086 | Engine front cover |
| 7 | 6268 | Timing chain |
| 8 | 6306 | Crankshaft timing sprocket |
| 9 | 6K254 | Primary timing chain tensioner |
| 10 | 6K255 | Primary timing chain tensioner arm |
| 11 | 6B274 | LH lower primary timing chain guide |
| 12 | 6M256 | RH primary timing chain guide |
| 13 | 6K297 | LH upper primary timing chain guide |
| 14 | 8501 | Coolant pump |
| 15 | 6010 | Cylinder block |
