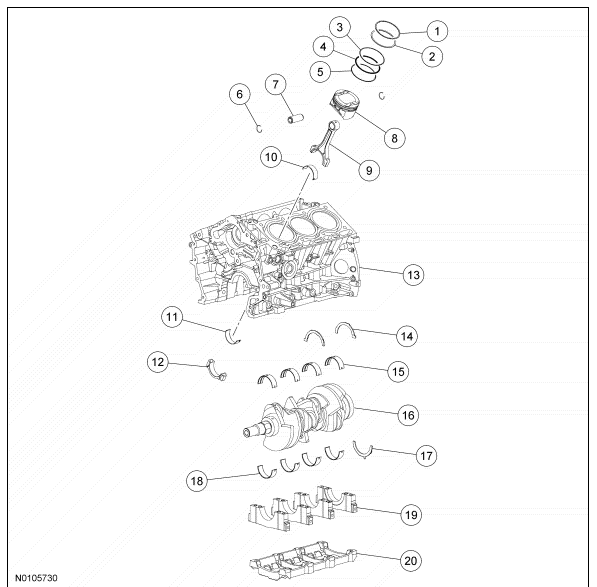

Lower Engine Block (View 2)
WARNING: This page is about a different car, the 2009 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 6150 | Piston compression upper ring (6 required) |
| 2 | 6152 | Piston compression lower ring (6 required) |
| 3 | 6159 | Piston oil control upper segment ring (6 required) |
| 4 | 6161 | Piston oil control spacer (6 required) |
| 5 | 6159 | Piston oil control lower segment ring (6 required) |
| 6 | 6140 | Piston pin retainer (12 required) |
| 7 | 6135 | Piston pin (6 required) |
| 8 | 6110 | Piston (6 required) |
| 9 | 6200 | Connecting rod (6 required) |
| 10 | 6211 | Connecting rod upper bearing (6 required) |
| 11 | 6211 | Connecting rod lower bearing (6 required) |
| 12 | 6210 | Connecting rod cap (6 required) |
| 13 | 6010 | Cylinder block |
| 14 | 6A341 | Crankshaft upper thrust washer (2 required) |
| 15 | 6333 | Cylinder block crankshaft main bearing (4 required) |
| 16 | 6303 | Crankshaft |
| 17 | 6K302 | Crankshaft lower thrust washer |
| 18 | 6333 | Lower crankshaft main bearings (4 required) |
| 19 | 6325 | Lower crankshaft main bearing caps (4 required) |
| 20 | 6C364 | Main bearing cap support brace |
