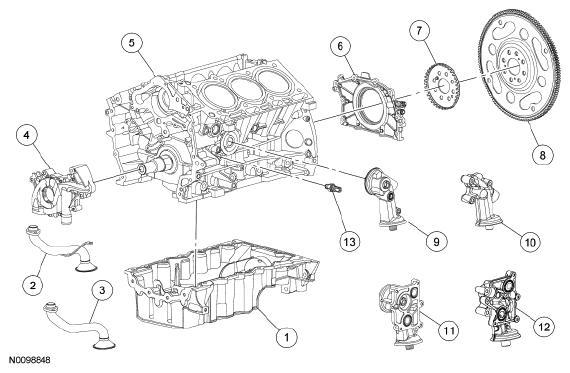

Section 1448 (Engine Mechanical): Disassembly: Engine: Material

All vehicles

1. Remove the 8 bolts and the flexplate.
   Fig 1: Locating Bolts And Flywheel

   Courtesy of FORD MOTOR CO.
2. Remove the crankshaft sensor ring.
   Fig 2: Locating Crankshaft Sensor Ring

   Courtesy of FORD MOTOR CO.
3. Using the Crankshaft Rear Oil Seal Remover and Slide Hammer, remove and discard the rear crankshaft seal.
   Fig 3: Removing Rear Crankshaft Seal

   Courtesy of FORD MOTOR CO.
NOTE: Install the engine stand bolts into the cylinder block only. Do not install the bolts into the oil pan.
4. Mount the engine on a suitable engine stand.
5. If equipped, remove the heat shield and disconnect the block heater electrical connector.
   • Detach all of the engine block heater harness retainers and remove the harness.
     Fig 4: Locating Heat Shield

     Courtesy of FORD MOTOR CO.
6. Disconnect the PCV hose from the PCV valve.
   Fig 5: Locating PCV Hose

   Courtesy of FORD MOTOR CO.
7. Disconnect the Throttle Body (TB) electrical connector.
   Fig 6: Locating Throttle Body (TB) Electrical Connector

   Courtesy of FORD MOTOR CO.
8. Detach the wiring harness retainers from the upper intake manifold.
   Fig 7: Locating Wiring Harness Retainers

   Courtesy of FORD MOTOR CO.
9. Remove the upper intake manifold support bracket bolt.
   Fig 8: Locating Upper Intake Manifold Support Bracket Bolt

   Courtesy of FORD MOTOR CO.
10. Remove the wire harness pin-type retainer and the fuel tube bracket bolt from the upper intake manifold.
    Fig 9: Locating Wire Harness Pin-Type Retainer And Fuel Tube Bracket Bolt

    Courtesy of FORD MOTOR CO.
NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.
11. Remove the 6 bolts and the upper intake manifold.
    • Discard the gaskets.
      Fig 10: Locating Bolts And Upper Intake Manifold

      Courtesy of FORD MOTOR CO.
12. Disconnect the Power Steering Pressure (PSP) switch electrical connector.
    Fig 11: Locating Power Steering Pressure (PSP) Switch Electrical Connector

    Courtesy of FORD MOTOR CO.

    Front Wheel Drive (FWD) vehicles

13. Disconnect the RH Catalyst Monitor Sensor (CMS) electrical connector.
    Fig 12: Locating RH Catalyst Monitor Electrical Connector

    Courtesy of FORD MOTOR CO.

    All vehicles

14. Disconnect the RH Heated Oxygen Sensor (HO2S) electrical connector.
    Fig 13: Locating RH Heated Oxygen Sensor (HO2S) Electrical Connector

    Courtesy of FORD MOTOR CO.
15. Disconnect the RH Variable Camshaft Timing (VCT) solenoid electrical connector.
    Fig 14: Locating RH Variable Camshaft Timing (VCT) Solenoid Electrical Connector

    Courtesy of FORD MOTOR CO.
16. Disconnect the 3 RH coil-on-plug electrical connectors.
    Fig 15: Locating RH Coil-On-Plug Electrical Connectors

    Courtesy of FORD MOTOR CO.
17. Detach all of the wiring harness retainers from the RH valve cover and stud bolts.
18. Disconnect the RH Camshaft Position (CMP) sensor electrical connector.
    Fig 16: Locating RH Camshaft Position (CMP) Sensor Electrical Connector

    Courtesy of FORD MOTOR CO.
19. Disconnect the Knock Sensor (KS) electrical connector.
    Fig 17: Locating Knock Sensor (KS) Electrical Connector

    Courtesy of FORD MOTOR CO.
20. Remove the bolt and the ground cable from the RH cylinder.
    Fig 18: Locating Bolt And Ground Cable

    Courtesy of FORD MOTOR CO.
21. Disconnect the 6 fuel injector electrical connectors (3 shown).
    Fig 19: Locating Fuel Injector Electrical Connectors

    Courtesy of FORD MOTOR CO.
22. Disconnect the Cylinder Head Temperature (CHT) sensor electrical connector.
    Fig 20: Locating Cylinder Head Temperature (CHT) Sensor Electrical Connector

    Courtesy of FORD MOTOR CO.
23. Disconnect the LH CMP  sensor electrical connector.
    Fig 21: Locating LH CHT Sensor Electrical Connector

    Courtesy of FORD MOTOR CO.
24. Disconnect the LH CMS  electrical connector.
    Fig 22: Locating LH Catalyst Monitor Sensor (CMS) Electrical Connector

    Courtesy of FORD MOTOR CO.
25. Disconnect the LH HO2S  electrical connector.
    Fig 23: Locating LH HO2S Electrical Connector

    Courtesy of FORD MOTOR CO.
26. Disconnect the 3 LH coil-on-plug electrical connectors.
    Fig 24: Locating LH Coil-On-Plug Electrical Connectors

    Courtesy of FORD MOTOR CO.
27. Disconnect the LH VCT  solenoid electrical connector.
    Fig 25: Locating LH VCT Solenoid Electrical Connector

    Courtesy of FORD MOTOR CO.
28. Detach all of the wiring harness retainers from the LH valve cover and stud bolts.
29. Remove the nut, the bolt and the heat shield.
    Fig 26: Locating Nut, Bolt And Heat Shield

    Courtesy of FORD MOTOR CO.
30. Remove the wiring harness retainer stud bolt.
    Fig 27: Locating Wiring Harness Retainer Stud Bolt

    Courtesy of FORD MOTOR CO.
31. Remove the wiring harness grommet.
    Fig 28: Locating Wiring Harness Grommet

    Courtesy of FORD MOTOR CO.
32. Disconnect the Crankshaft Position (CKP) sensor electrical connector.
    Fig 29: Locating Crankshaft Position (CKP) Sensor Electrical Connector

    Courtesy of FORD MOTOR CO.
33. Disconnect the A/C compressor electrical connector.
    • Detach the A/C compressor wiring harness retainer.
      Fig 30: Locating A/C Compressor Wiring Harness Retainer

      Courtesy of FORD MOTOR CO.
34. Remove the nut and disconnect the generator B+ cable.
    Fig 31: Locating Nut And Generator B+ Cable

    Courtesy of FORD MOTOR CO.
35. Disconnect the generator electrical connector.
    Fig 32: Locating Generator Electrical Connector

    Courtesy of FORD MOTOR CO.
36. Disconnect the Engine Oil Pressure (EOP) switch electrical connector and the wiring harness pin-type retainer.
    • Remove the wiring harness from the engine.
      Fig 33: Locating Engine Oil Pressure (EOP) Switch Electrical Connector And Wiring Harness Pin-Type Retainer

      Courtesy of FORD MOTOR CO.
37. Remove the nut, 2 bolts and the A/C compressor.
    Fig 34: Locating Nut, Bolts And A/C Compressor

    Courtesy of FORD MOTOR CO.
38. Remove the A/C compressor mounting stud from the oil pan.
    Fig 35: Locating A/C Compressor Mounting Stud

    Courtesy of FORD MOTOR CO.
39. Remove the nut, bolt and the generator.
    Fig 36: Locating Nut, Bolt And Generator

    Courtesy of FORD MOTOR CO.
40. Remove the PSP  tube bracket-to-power steering pump bolt.
    Fig 37: Locating PSP Tube Bracket-To-Power Steering Pump Bolt

    Courtesy of FORD MOTOR CO.
41. Remove the nut and the PSP  tube bracket from the RH valve cover stud bolt.
    Fig 38: Locating RH Valve Cover Stud Bolt

    Courtesy of FORD MOTOR CO.
42. Remove the bolt and the PSP  tube bracket from the RH cylinder head.
    Fig 39: Locating Bolt And Power Steering Pressure (PSP) Tube Bracket

    Courtesy of FORD MOTOR CO.
43. Remove the 3 bolts and position aside the power steering pump.
    Fig 40: Locating Power Steering Pump And Bolts

    Courtesy of FORD MOTOR CO.
44. Remove the 3 bolts and the accessory drive belt tensioner.
    Fig 41: Locating Bolts And Accessory Drive Belt Tensioner

    Courtesy of FORD MOTOR CO.
45. Remove the 4 nuts (3 shown) and the LH catalytic converter.
    • Discard the nuts and the gasket.
      Fig 42: Locating Nuts And LH Catalytic Converter

      Courtesy of FORD MOTOR CO.
46. Remove the 3 bolts and the LH exhaust manifold heat shield.
    Fig 43: Locating Bolts And LH Exhaust Manifold Heat Shield

    Courtesy of FORD MOTOR CO.
47. Remove the 6 nuts and the LH exhaust manifold.
    • Discard the nuts and exhaust manifold gaskets.
      Fig 44: Locating Nuts And LH Exhaust Manifold

      Courtesy of FORD MOTOR CO.
48. Clean and inspect the LH exhaust manifold. For additional information, refer to ENGINE SYSTEM - GENERAL INFORMATION .
49. Remove and discard the 6 LH exhaust manifold studs.
    Fig 45: Locating LH Exhaust Manifold Studs

    Courtesy of FORD MOTOR CO.

    FWD vehicles

50. Remove the 4 nuts and the RH catalytic converter.
    • Discard the nuts and the gasket.
      Fig 46: Locating Nuts And RH Catalytic Converter

      Courtesy of FORD MOTOR CO.

    All vehicles

51. Remove the 3 bolts and the RH exhaust manifold heat shield.
    Fig 47: Locating Bolts And RH Exhaust Manifold Heat Shield

    Courtesy of FORD MOTOR CO.
52. Remove the 6 nuts and the RH exhaust manifold.
    • Discard the nuts and exhaust manifold gaskets.
      Fig 48: Locating Nuts And RH Exhaust Manifold

      Courtesy of FORD MOTOR CO.
53. Clean and inspect the RH exhaust manifold. For additional information, refer to ENGINE SYSTEM - GENERAL INFORMATION .
54. Remove and discard the 6 RH exhaust manifold studs.
    Fig 49: Locating RH Exhaust Manifold Studs

    Courtesy of FORD MOTOR CO.
55. Remove the RH cylinder block drain plug or, if equipped, the block heater.
    • Allow coolant to drain from the cylinder block.

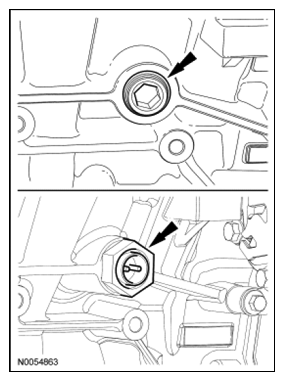

      Fig 50: Locating Cylinder Block Drain Plug And Block Heater

      Courtesy of FORD MOTOR CO.
56. Remove the LH cylinder block drain plug.
    • Allow coolant to drain from the cylinder block.
      Fig 51: Locating LH Cylinder Block Drain Plug

      Courtesy of FORD MOTOR CO.
57. Remove the pin-type retainer and the cover.
    Fig 52: Locating Pin-Type Retainer And Cover

    Courtesy of FORD MOTOR CO.
58. Remove the 2 bolts and the engine lifting eye.
    Fig 53: Locating Bolts And Engine Lifting Eye

    Courtesy of FORD MOTOR CO.
59. Remove the bolt and the upper intake manifold support bracket.
    Fig 54: Locating Bolt And Upper Intake Manifold Support Bracket

    Courtesy of FORD MOTOR CO.
60. Remove the bolt and the RH CMP  sensor.
    Fig 55: Locating Bolt And RH CMP Sensor

    Courtesy of FORD MOTOR CO.
61. Remove the coolant bypass hose from the thermostat housing.
    Fig 56: Locating Coolant Bypass Hose

    Courtesy of FORD MOTOR CO.
62. Remove the 4 bolts and the fuel rail and injectors as an assembly.
    Fig 57: Locating Bolts And Fuel Rail And Injectors

    Courtesy of FORD MOTOR CO.
63. Remove the 3 thermostat housing-to-lower intake manifold bolts.
    • Remove the thermostat housing and discard the gasket.
      Fig 58: Locating Thermostat Housing-To-Lower Intake Manifold Bolts

      Courtesy of FORD MOTOR CO.
NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.
64. Remove the 10 bolts and the lower intake manifold.
    • Discard the gaskets.
      Fig 59: Locating Bolts And Lower Intake Manifold

      Courtesy of FORD MOTOR CO.
65. Disconnect and remove the CHT  sensor jumper harness.
    Fig 60: Locating CHT Sensor Jumper Harness

    Courtesy of FORD MOTOR CO.
66. Remove the bolt and the LH CMP sensor.
    Fig 61: Locating Bolt And LH CHT Sensor

    Courtesy of FORD MOTOR CO.
67. Remove the bolt and the CKP  sensor.
    Fig 62: Locating Bolt And CKP Sensor

    Courtesy of FORD MOTOR CO.
68. Remove the EOP  switch.
    Fig 63: Locating EOP Switch

    Courtesy of FORD MOTOR CO.
NOTE: A new oil cooler must be installed or severe damage to the engine can occur.

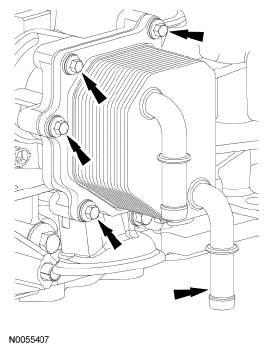

69. If equipped, remove the 6 bolts and the oil cooler.
    • Discard the oil cooler and the gaskets.
      Fig 64: Locating Oil Cooler And Gaskets

      Courtesy of FORD MOTOR CO.

    Early build engines

NOTE: Engine without oil cooler shown, engine with oil cooler similar.
70. Remove the 2 bolts and the oil filter adapter.
    • Discard the gasket and O-ring seal (on banjo bolt).

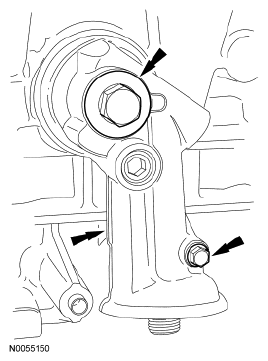

      Fig 65: Locating Bolts And Oil Filter Adapter

      Courtesy of FORD MOTOR CO.

    Late build engines

NOTE: Engine without oil cooler shown, engine with oil cooler similar.
71. Remove the 3 bolts and the oil filter adapter.
    • Discard the gasket.
      Fig 66: Locating Bolts And Oil Filter Adapter

      Courtesy of FORD MOTOR CO.

    All engines

NOTE: LH shown, RH similar.
Fig 67: Locating Bolts And Coil-On-Plug Assemblies
Courtesy of FORD MOTOR CO.
72. Remove the 6 bolts and the 6 coil-on-plugs.
73. Loosen the 11 stud bolts and remove the LH valve cover.
    • Discard the gasket.
      Fig 68: Locating Stud Bolts

      Courtesy of FORD MOTOR CO.
74. Loosen the bolt, the 10 stud bolts and remove the RH valve cover.
    • Discard the gasket.

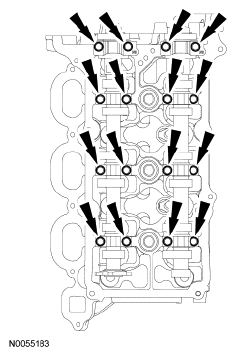

      Fig 69: Locating Stud Bolts

      Courtesy of FORD MOTOR CO.
NOTE: VCT  solenoid seal removal shown, spark plug tube seal similar.
75. Inspect the VCT  solenoid seals and the spark plug tube seals. Remove any damaged seals.
    • Using the VCT  Spark Plug Tube Seal Remover and Handle, remove the seal(s).
      Fig 70: Removing Seal Using Tool

      Courtesy of FORD MOTOR CO.
76. Using the Strap Wrench, remove the crankshaft bolt and washer.
    • Discard the bolt.
      Fig 71: Locating Crankshaft Bolt And Washer

      Courtesy of FORD MOTOR CO.
77. Using the 3-Jaw Puller, remove the crankshaft pulley.
    Fig 72: Removing Crankshaft Pulley

    Courtesy of FORD MOTOR CO.
78. Using the Oil Seal Remover, remove and discard the crankshaft front seal.
    Fig 73: Removing Crankshaft Front Seal

    Courtesy of FORD MOTOR CO.

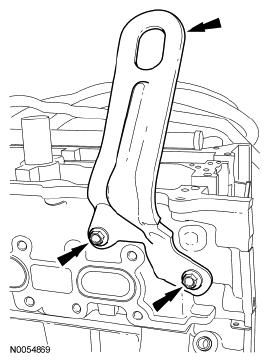

79. Remove the 2 bolts and the engine mount bracket.
    Fig 74: Locating Bolts And Engine Mount Bracket

    Courtesy of FORD MOTOR CO.
NOTE: Only use hand tools to remove the studs.
Fig 75: Locating Engine Mount Studs
Courtesy of FORD MOTOR CO.
80. Remove the 2 engine mount studs.
81. Remove the 3 bolts and the engine mount bracket.
    Fig 76: Locating Engine Mount Bracket And Bolt

    Courtesy of FORD MOTOR CO.

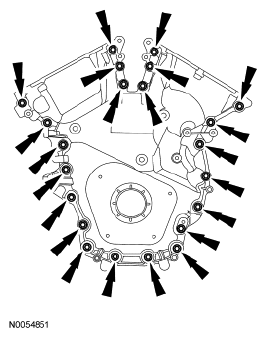

82. Remove the 22 engine front cover bolts.
    Fig 77: Locating Engine Front Cover Bolts

    Courtesy of FORD MOTOR CO.

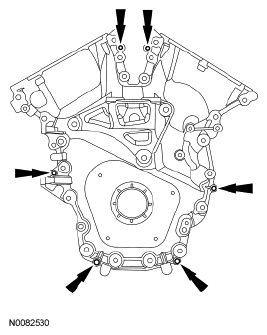

83. Install 6 of the engine front cover bolts (finger tight) into the 6 threaded holes in the engine front cover.
    • Tighten the bolts one turn at a time in a crisscross pattern until the engine front cover-to-cylinder block seal is released.
      • Remove the engine front cover.
        Fig 78: Locating Engine Front Cover Bolts

        Courtesy of FORD MOTOR CO.

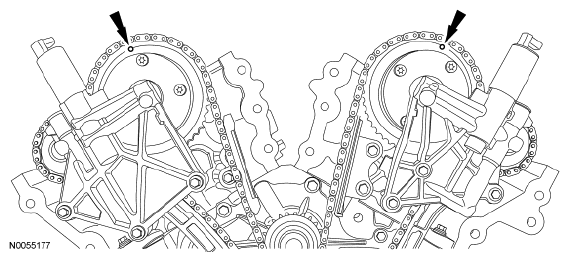

84. Rotate the crankshaft clockwise and align the timing marks on the VCT  assemblies as shown.
    Fig 79: Locating Timing Marks

    Courtesy of FORD MOTOR CO.
NOTE: The Camshaft Holding Tool will hold the camshafts in the Top Dead Center (TDC) position.
Fig 80: Identifying Camshaft Holding Tool Onto Flats Of LH Camshafts
Courtesy of FORD MOTOR CO.
85. Install the Camshaft Holding Tool onto the flats of the LH camshafts.
NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC  position.
Fig 81: Identifying Camshaft Holding Tool Onto Flats Of RH Camshafts
Courtesy of FORD MOTOR CO.
86. Install the Camshaft Holding Tool onto the flats of the RH camshafts.
87. Remove the 3 bolts and the RH VCT  housing.
    Fig 82: Locating Bolts And RH VCT Housing

    Courtesy of FORD MOTOR CO.
88. Remove the 3 bolts and the LH VCT  housing.
    Fig 83: Locating Bolts And LH VCT Housing

    Courtesy of FORD MOTOR CO.
89. Remove and discard the VCT  housing seals.
    Fig 84: Locating VCT Housing Seals

    Courtesy of FORD MOTOR CO.

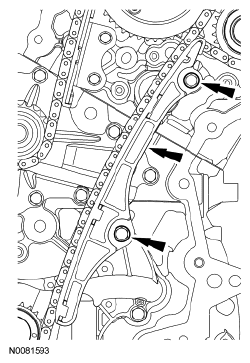

90. Remove the 2 bolts and the primary timing chain tensioner.
    Fig 85: Locating Bolts And Primary Timing Chain Tensioner

    Courtesy of FORD MOTOR CO.

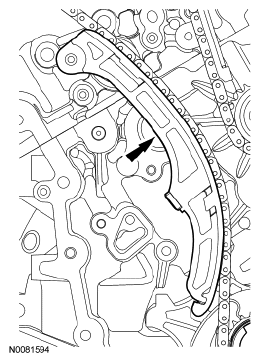

91. Remove the primary timing chain tensioner arm.
    Fig 86: Locating Primary Timing Chain Tensioner Arm

    Courtesy of FORD MOTOR CO.

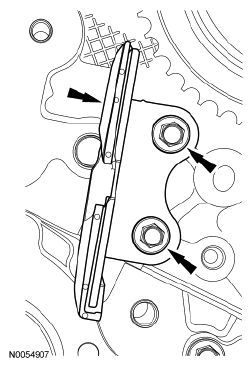

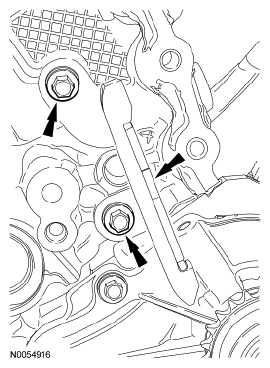

92. Remove the 2 bolts and the lower LH primary timing chain guide.
    Fig 87: Locating Bolts And Lower LH Primary Timing Chain Guide

    Courtesy of FORD MOTOR CO.
93. Remove the primary timing chain.
    Fig 88: Locating Primary Timing Chain

    Courtesy of FORD MOTOR CO.
94. Remove the crankshaft timing chain sprocket.
    Fig 89: Locating Crankshaft Timing Chain Sprocket

    Courtesy of FORD MOTOR CO.
95. Remove the 2 bolts and the upper LH primary timing chain guide.
    Fig 90: Locating Bolts And Upper LH Primary Timing Chain Guide

    Courtesy of FORD MOTOR CO.
96. Compress the LH secondary timing chain tensioner and install a suitable lockpin to retain the tensioner in the collapsed position.
    Fig 91: Installing Lockpin To Retain Tensioner In Collapsed Position

    Courtesy of FORD MOTOR CO.
NOTE: The VCT  bolt and the exhaust camshaft bolt must be discarded and new ones installed. However, the exhaust camshaft washer is reusable.
97. Remove and discard the LH VCT  assembly bolt and the LH exhaust camshaft sprocket bolt.
    • Remove the LH VCT  assembly, secondary timing chain and the LH exhaust camshaft sprocket as an assembly.
      Fig 92: Locating LH VCT Assembly Bolt And LH Exhaust Camshaft Sprocket Bolt

      Courtesy of FORD MOTOR CO.
NOTE: When the Camshaft Holding Tool is removed, valve spring pressure will rotate the LH camshafts approximately 3 degrees to a neutral position.
Fig 93: Identifying Camshaft Holding Tool To LH Camshafts
Courtesy of FORD MOTOR CO.
98. Remove the Camshaft Holding Tool from the LH camshafts.
NOTE: The camshafts must remain in the neutral position during removal or engine damage may occur.
Fig 94: Locating LH Camshafts
Courtesy of FORD MOTOR CO.
99. Verify the LH camshafts are in the neutral position.
100. Remove the 2 bolts and the LH secondary timing chain tensioner.
     Fig 95: Locating Bolts And LH Secondary Timing Chain Tensioner

     Courtesy of FORD MOTOR CO.
NOTE: Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.
101. Remove the bolts and the LH camshaft bearing caps.
     • Remove the LH camshafts.
       Fig 96: Locating Bolts And LH Camshaft Bearing Caps

       Courtesy of FORD MOTOR CO.
102. Compress the RH secondary timing chain tensioner and install a suitable lockpin to retain the tensioner in the collapsed position.
     Fig 97: Installing Lockpin To Retain Tensioner In Collapsed Position

     Courtesy of FORD MOTOR CO.
NOTE: The VCT  bolt and the exhaust camshaft bolt must be discarded and new ones installed. However, the exhaust camshaft washer is reusable.
103. Remove and discard the RH VCT  assembly bolt and the RH exhaust camshaft sprocket bolt.
     • Remove the RH VCT  assembly, secondary timing chain and the RH exhaust camshaft sprocket as an assembly.
       Fig 98: Locating RH VCT Assembly Bolt And RH Exhaust Camshaft Sprocket Bolt

       Courtesy of FORD MOTOR CO.
104. Remove the Camshaft Holding Tool from the RH camshafts.
     Fig 99: Identifying Camshaft Holding Tool To RH Camshafts

     Courtesy of FORD MOTOR CO.
NOTE: The camshafts must remain in the neutral position during removal or engine damage may occur.
Fig 100: Locating RH Camshafts
Courtesy of FORD MOTOR CO.
105. Rotate the RH camshafts counterclockwise to the neutral position.
106. Remove the 2 bolts and the RH secondary timing chain tensioner.
     Fig 101: Locating Bolts And RH Secondary Timing Chain Tensioner

     Courtesy of FORD MOTOR CO.
107. Remove the 2 bolts and the RH primary timing chain guide.
     Fig 102: Locating RH Primary Timing Chain Guide And Bolts

     Courtesy of FORD MOTOR CO.
NOTE: Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.
108. Remove the bolts and the RH camshaft bearing caps.
     • Remove the RH camshafts.
       Fig 103: Locating Bolts And RH Camshaft Bearing Caps

       Courtesy of FORD MOTOR CO.
NOTE: If the components are to be reinstalled, they must be installed in the same positions. Mark the components for installation into their original locations.
NOTE: LH shown, RH similar.
Fig 104: Locating Valve Tappets
Courtesy of FORD MOTOR CO.
109. Remove the valve tappets from the cylinder heads.
NOTE: LH shown, RH similar.
Fig 105: Locating M6 Bolt
Courtesy of FORD MOTOR CO.
110. Remove and discard the M6 bolt from each cylinder head.
NOTE: Place clean, lint-free shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
NOTE: Aluminum surfaces are soft and may be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface.
NOTE: The cylinder head bolts must be discarded and new bolts must be installed. They are tighten-to-yield design and cannot be reused.
NOTE: LH shown, RH similar.

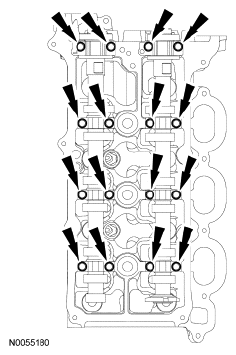

111. Remove and discard the 8 bolts from each cylinder head.
     • Remove the cylinder heads.
     • Discard the cylinder head gaskets.
       Fig 106: Locating Cylinder Head Bolts

       Courtesy of FORD MOTOR CO.
NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.
NOTE: Observe all warnings or cautions and follow all application directions contained on the packaging of the silicone gasket remover and the metal surface prep.
NOTE: If there is no residual gasket material present, metal surface prep can be used to clean and prepare the surfaces.
112. Clean the cylinder head-to-cylinder block mating surfaces of both the cylinder heads and the cylinder block in the following sequence.
     1. Remove any large deposits of silicone or gasket material with a plastic scraper.
     2. Apply silicone gasket remover, following package directions, and allow to set for several minutes.
     3. Remove the silicone gasket remover with a plastic scraper. A second application of silicone gasket remover may be required if residual traces of silicone or gasket material remain.
     4. Apply metal surface prep, following package directions, to remove any remaining traces of oil or coolant and to prepare the surfaces to bond with the new gasket. Do not attempt to make the metal shiny. Some staining of the metal surfaces is normal.
113. Support the cylinder head on a bench with the head gasket side up. Check the cylinder head distortion and the cylinder block distortion. For additional information, refer to ENGINE SYSTEM - GENERAL INFORMATION .
114. Remove the coolant tube.
     • Remove and discard the O-ring seals.
       Fig 107: Locating Coolant Tube

       Courtesy of FORD MOTOR CO.
115. Remove the 2 bolts and the KS  .
     Fig 108: Locating Bolts And KS

     Courtesy of FORD MOTOR CO.
116. Remove the 8 bolts and the coolant pump.
     Fig 109: Locating Bolts And Coolant Pump

     Courtesy of FORD MOTOR CO.
117. Remove the 16 oil pan bolts.
     Fig 110: Locating Oil Pan Bolts

     Courtesy of FORD MOTOR CO.
118. Install 2 of the oil pan bolts (finger tight) into the 2 threaded holes in the oil pan.
     • Alternately tighten the 2 bolts one turn at a time until the oil pan-to-cylinder block seal is released.
       • Remove the oil pan.
         Fig 111: Locating Oil Pan Bolts

         Courtesy of FORD MOTOR CO.

     Early build engines

119. Remove the 3 bolts and the oil pump screen and pickup tube.
     • Discard the O-ring seal.
       Fig 112: Locating Bolts And Oil Pump Screen And Pickup Tube

       Courtesy of FORD MOTOR CO.

     Late build engines

120. Remove the 2 bolts and the oil pump screen and pickup tube.
     • Discard the O-ring seal.
       Fig 113: Locating Bolts And Oil Pump Screen And Pickup Tube

       Courtesy of FORD MOTOR CO.

     All engines

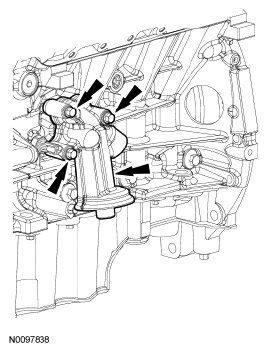

121. Remove the 3 bolts and the oil pump.
     Fig 114: Locating Bolts And Oil Pump

     Courtesy of FORD MOTOR CO.
122. Remove the 8 crankshaft rear seal retainer bolts.
     Fig 115: Locating Crankshaft Rear Seal Retainer Bolts

     Courtesy of FORD MOTOR CO.
123. Install the 2 M6 oil pan bolts (finger tight) into the 2 threaded holes in the crankshaft rear seal retainer.
     • Alternately tighten the 2 bolts one turn at a time until the crankshaft rear seal retainer-to-cylinder block seal is released.
       • Remove the crankshaft rear seal retainer.
         Fig 116: Locating M6 Oil Pan Bolts

         Courtesy of FORD MOTOR CO.
NOTE: Only use a 3M Roloc® Bristle Disk (2-in white, part number 07528) to clean the engine front cover, oil pan and crankshaft rear seal retainer plate. Do not use metal scrapers, wire brushes or any other power abrasive disk to clean the engine front cover, oil pan and crankshaft rear seal retainer plate. These tools cause scratches and gouges that make leak paths.
124. Clean the engine front cover, oil pan and crankshaft rear seal retainer plate using a 3M Roloc® Bristle Disk (2-in white, part number 07528) in a suitable tool turning at the recommended speed of 15,000 RPM.
     • Thoroughly wash the engine front cover, oil pan and crankshaft rear seal retainer plate to remove any foreign material, including any abrasive particles created during the cleaning process.
NOTE: Place clean, lint-free shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages or the oil pan, may cause engine failure.
NOTE: Do not use wire brushes, power abrasive discs or 3M Roloc® Bristle Disk (2-in white, part number 07528) to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. They also cause contamination that will cause premature engine failure. Remove all traces of sealant.
125. Clean the sealing surfaces of the cylinder block in the following sequence.
     1. Remove any large deposits of silicone or gasket material.
     2. Apply silicone gasket remover and allow to set for several minutes.
     3. Remove the silicone gasket remover. A second application of silicone gasket remover may be required if residual traces of silicone or gasket material remain.
     4. Apply metal surface prep to remove any remaining traces of oil or coolant and to prepare the surfaces to bond. Do not attempt to make the metal shiny. Some staining of the metal surfaces is normal.
     5. Make sure the 2 engine front cover locating dowel pins are seated correctly in the cylinder block.
