Lower Intake Manifold: Notes

WARNING: This page is about a different car, the 2009 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.

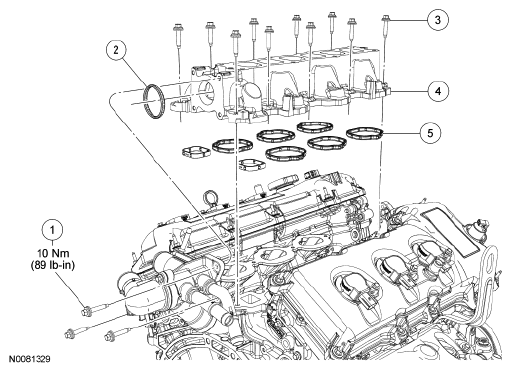

Fig 1: Lower Intake Manifold Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	W503279	Thermostat housing-to-lower intake manifold bolt (3 required)
2	8A571	Thermostat housing gasket
3	W503279	Lower intake manifold bolt (10 required)
4	9K461	Lower intake manifold
5	9439	Lower intake manifold gasket (8 required)
