Removal And Installation: Spring: Notes

WARNING: This page is about a different car, the 2009 Ford Econoline and 2009 Ford E450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

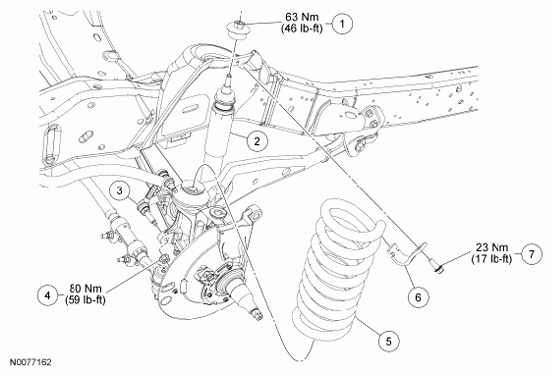

Fig 1: Shock Absorber Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

PART NUMBER REFERENCE

Item	Part Number	Description
1	18A192	Shock absorber upper nut and bushing
2	18045	Shock absorber
3	5K483	Stabilizer bar link
4	W710269	Stabilizer bar link nut
5	5310	Spring
6	5A333	Spring upper bracket
7	W505263	Spring upper bracket bolt

NOTE: Vehicles with 6.8L engine, RH side only.

Fig 2: Shock Absorber Upper Heat Shield With Bolt With Torque Specifications

Courtesy of FORD MOTOR CO.

PART NUMBER REFERENCE

Item	Part Number	Description
8	W505260	Shock absorber upper heat shield bolt
9	3C428	Shock absorber upper heat shield
