Antenna Module Connector (C2086)
Antenna Module Connector (C2086)

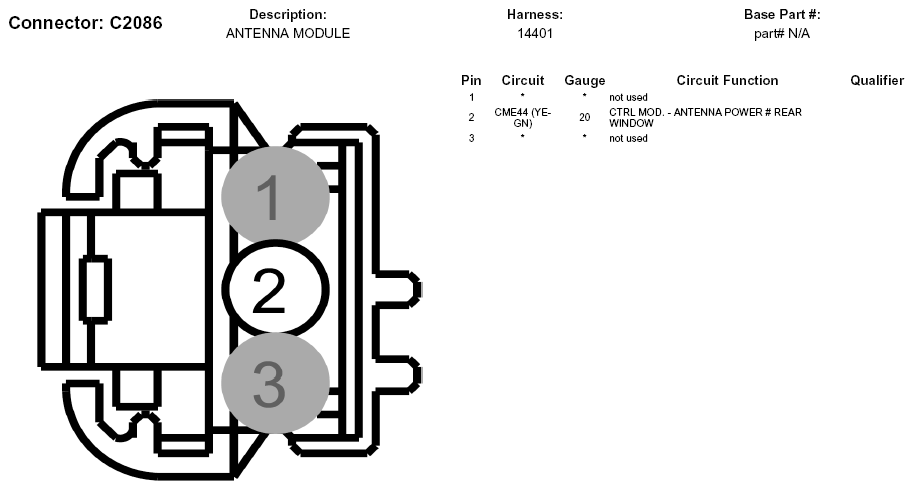

Fig 1: Antenna Module Connector End View (C2086)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
